11.6 Change Web Server Security Settings After Initial Setup

NOTE:Any changes will require a FieldServer reboot to take effect.

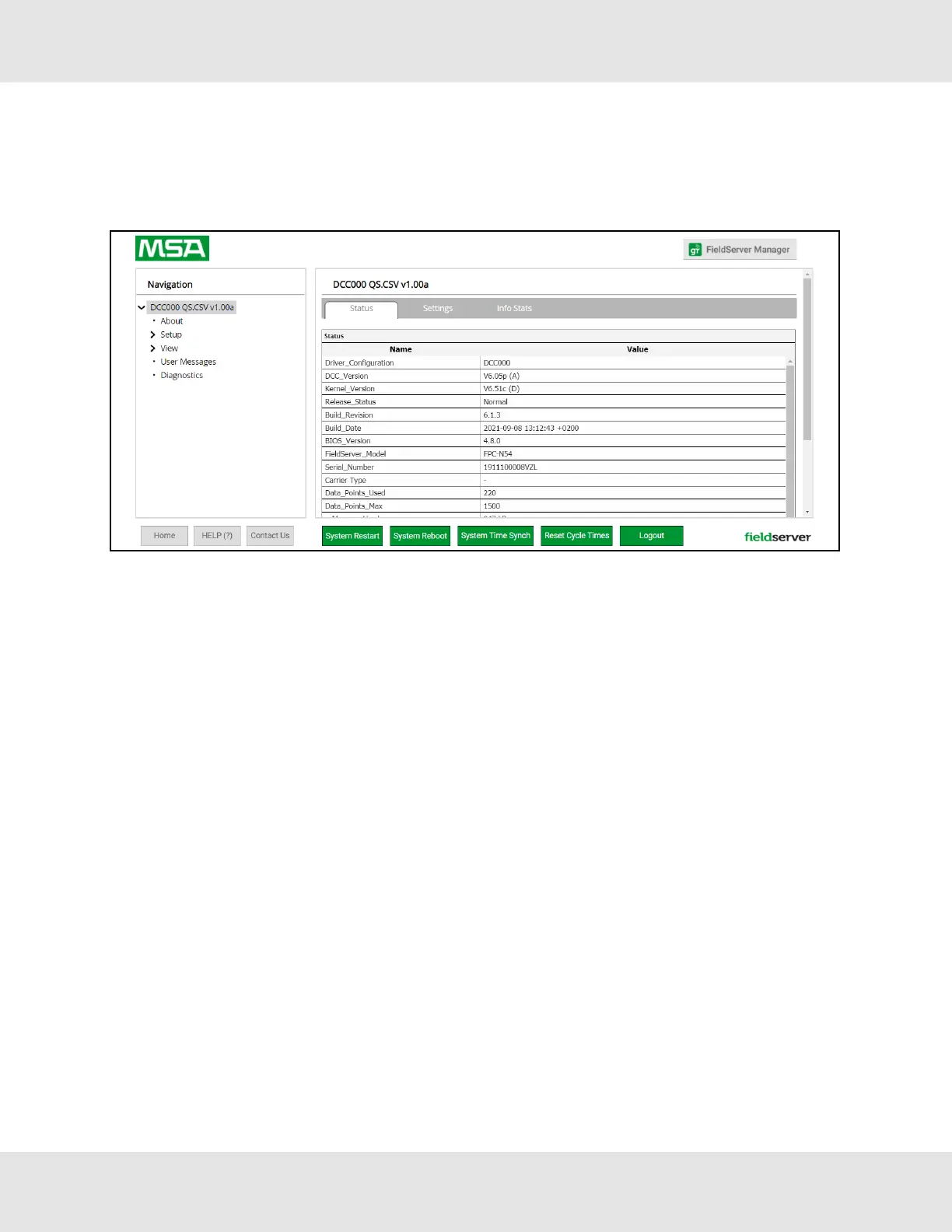

• Navigate to the FS-GUI page.

• Click Setup in the Navigation panel.
