The enclosures vary depending on the particular version. The electrical parts and interfaces have the same
basic functionality.
The device has:
• a quick and easy pluggable sensor,
• a four digit liquid crystal display [LCD],
• a key pad with a cover
• a detachable backplate for installation on a wall or on a pipe
The device operates with a 4–20mA output signal.

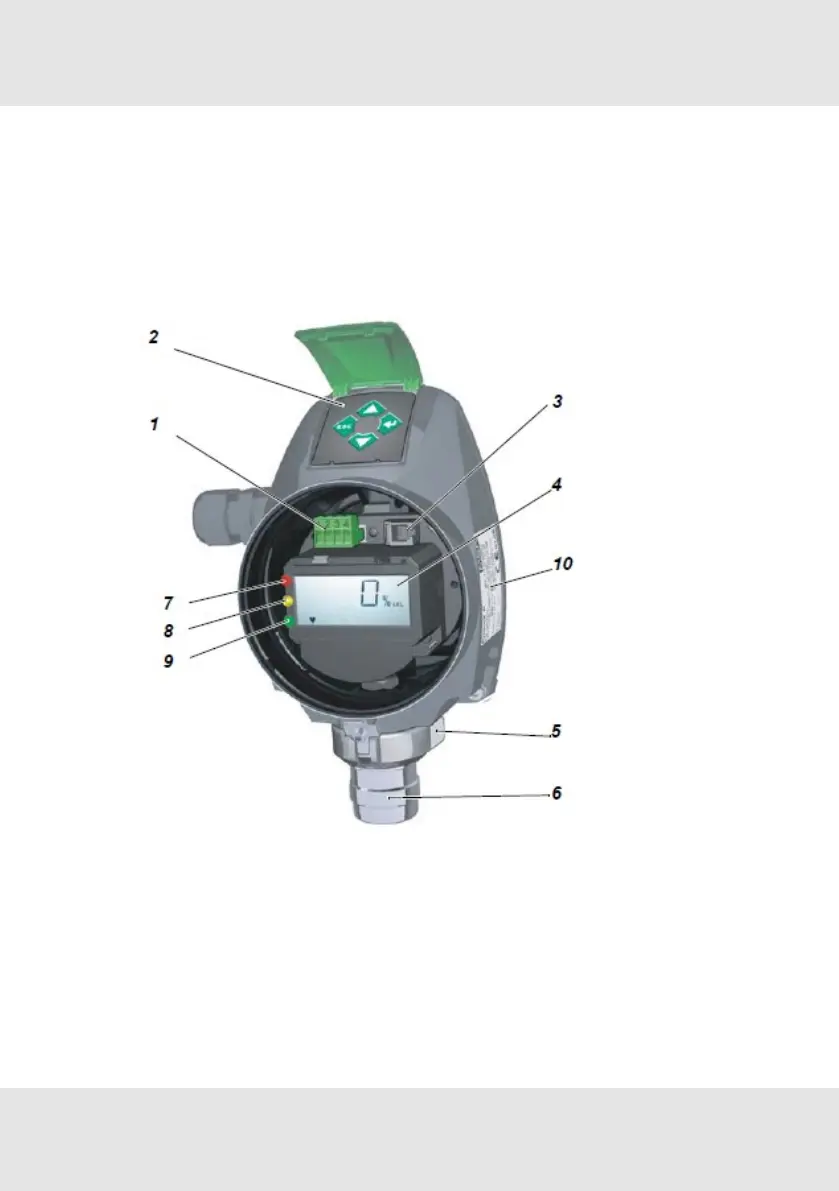

Figure 2 Exploded View (PrimaX P)
1 Terminal for power connection 6 Sensor
2 Keypad with cover 7 Red LED (PrimaX P only)
3 Connector for factory use 8 Yellow LED (PrimaX P only)
4 Display 9 Green LED (PrimaX P only)
5 Bayonet joint with interlock 10 Identification plate
