MSA PrimaX - Sensor Tag

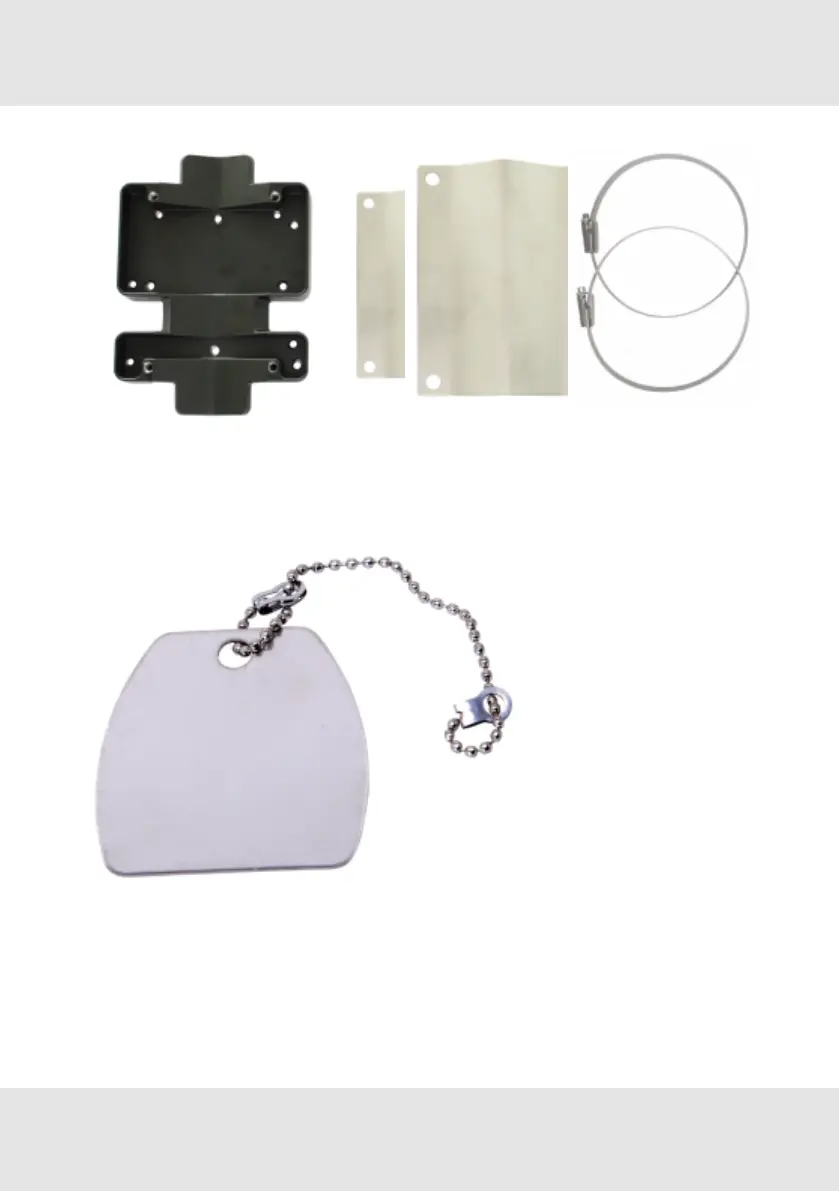

Figure 18 Mounting plate
Figure 19 Retaining
plate
Figure 20 Tightening
straps
NOTE: The Pipe mounting kit not included in the EC-Type Examination Certificate
BVS 10 ATEX E 009 X
8.7 Sensor Tag
Figure 21 Sensor tag
GB PrimaX 58
8 Accessories
