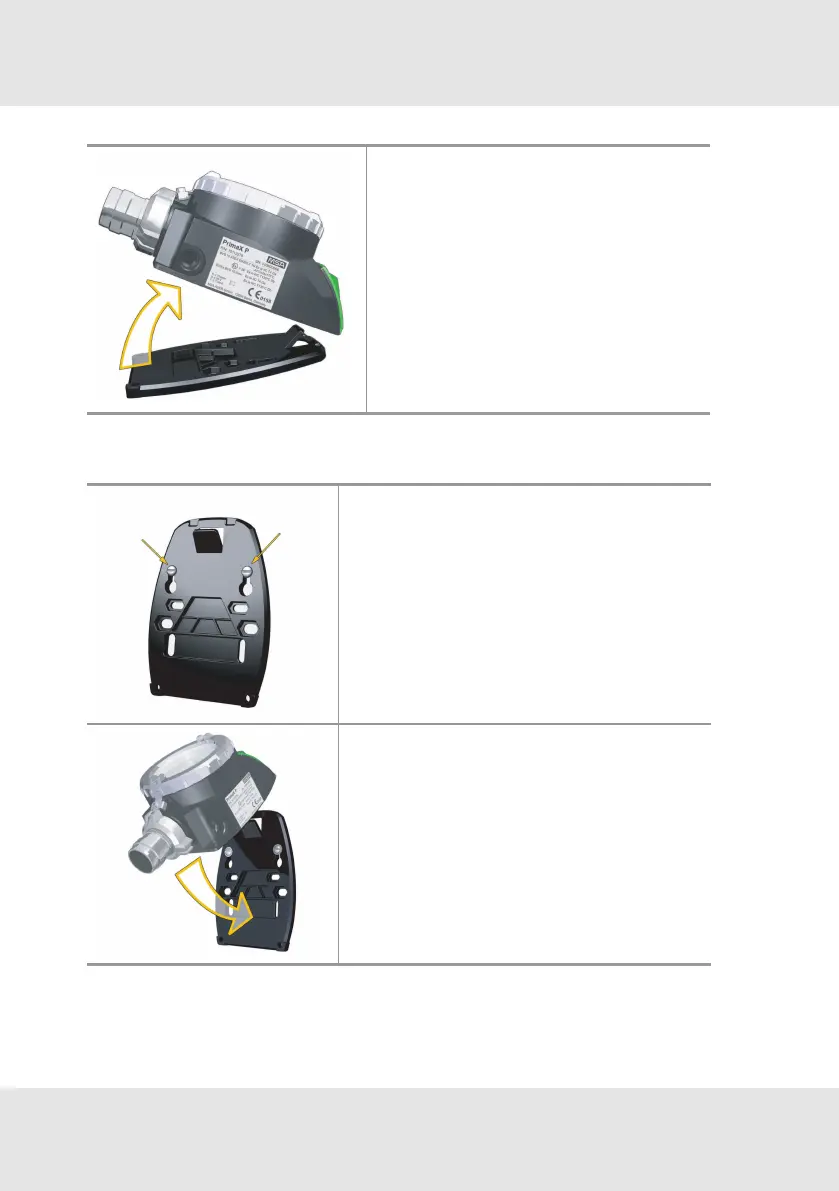

Remove Device
2. Remove the device from the backplate by
lifting up the lower edge as shown.
Wall or Pipe Mounting
For pipe mounting a pipe mounting kit is necessary (→chapter8.6 Pipe Mounting Kit).
Install the Backplate
1. Use the two keyhole slots for attaching the
mounting plate to the wall. Use 6mm diameter
screws and suitable plugs.
2. For a wall installation use the backplate as a
template for drilling the holes for the two fixing
screws, for a pipe installation use the pipe clip.
3. Attach the backplate to the wall or the pipe clip
with M6 x 20 screws.
a. The hitch should point away from the wall
or pipe.
b. The straight edge of the backplate should
be at the bottom.
Attach the Device to the Backplate
4. Attach the device to the top of the backplate.
5. Fold down the device, till it is closed to the
backplate.
13 PrimaX GB
3 Installation
