Sensor errors [E-20 – E-29] could be cleared by checking if the sensor is well connected, or by changing the
sensor, or also by resetting the device.
10.4 Timeout
The automatic calibration has a timeout of 4minutes. The manual calibration has a timeout of 60minutes [M-
01, M-02]. Any test procedure [M-06, M-07, M-13 and the sensor exchange M-05] has a timeout of
15minutes. Anywhere else in the menu the timeout is 2minutes, if no button is pressed.
10.5 Mechanical Installation
Dimensions

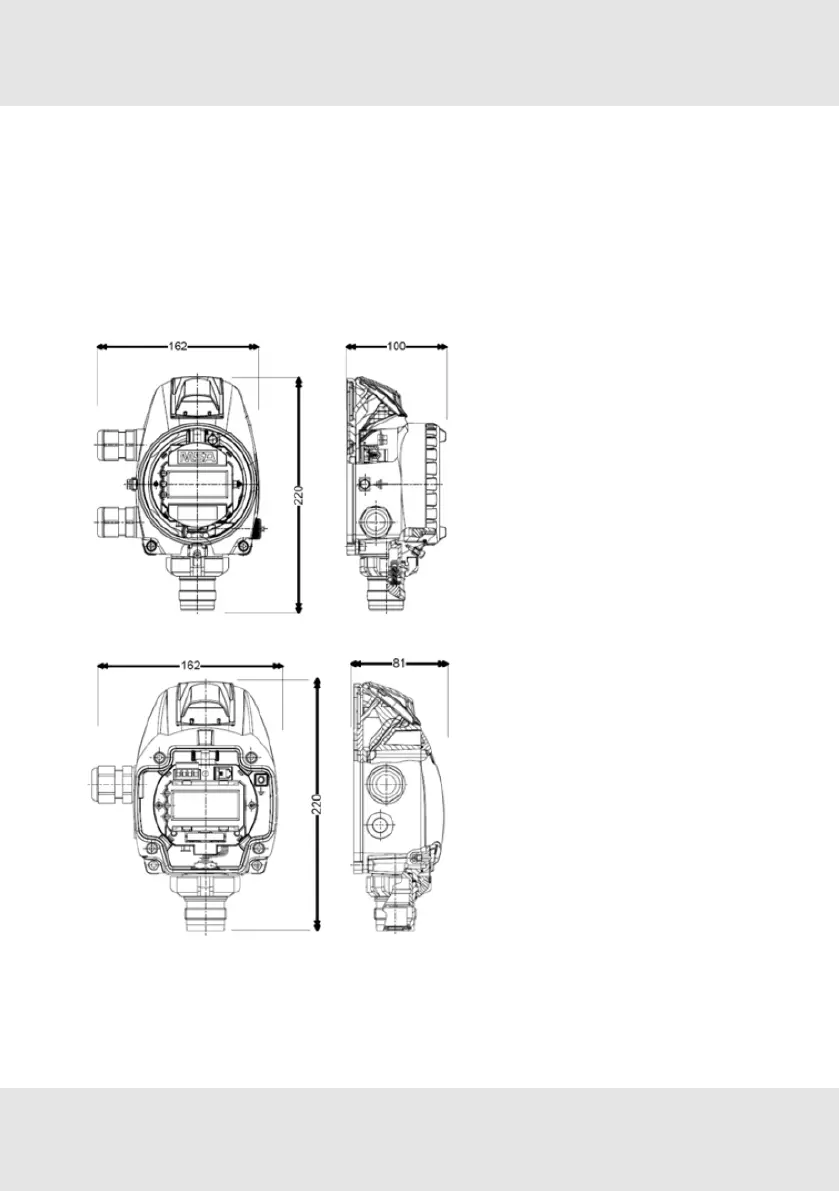

Figure 25 Outline dimensions Prima X P
Figure 26 Outline dimensions Prima X I
Cable gland
• M25 x 1,5;Torque 8 -12 Nm; only ATEX certified versions for gas and dust shall be used.
