MSA ULTIMA X5000 User Manual

X5000
X5000
JUNCTION
BOX
328 ft
MAX
SENSOR 1
SENSOR 1
24V DC
SEE TABLE 1 & 2
SEE TABLE 1 & 2
24V DC

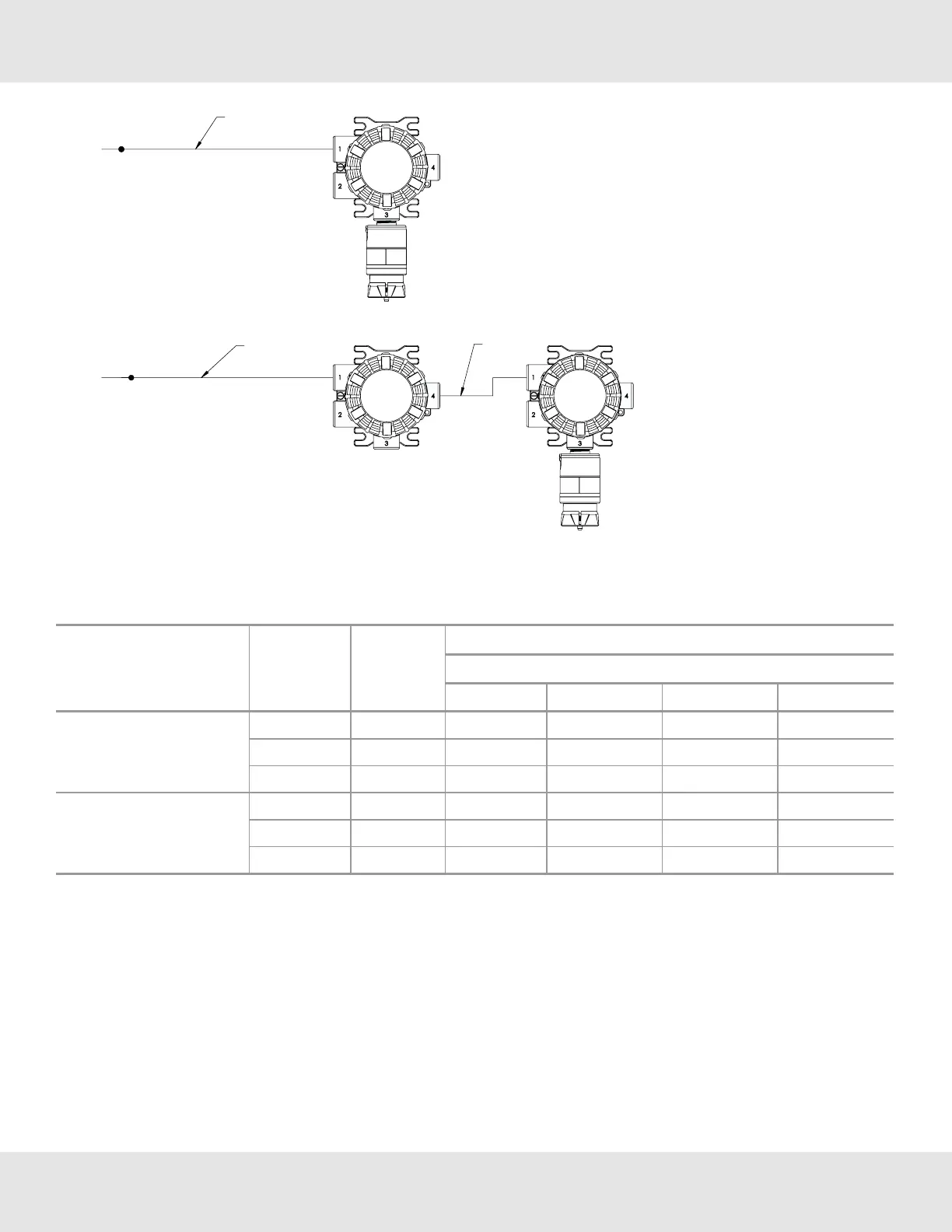

Figure 27 Single Sensor
Table 1 Maximum Wire Length to Main Transmitter with Single Sensor, Imperial Units
SensorMounting Sensor1 Max.
Power
1
(W)
Max.Distance(ft)totransmitter
24VDCSupply
18AWG 16AWG 14AWG 12AWG
Mountedontransmitter Echem 2.8 2211 3337 5314 8440
Catalytic 4.9 1548 2335 3719 5907
XIRPLUS 6.7 1184 1787 2846 4520
Remotemountedon
junctionbox(upto328ft)
Echem 2.8 2210 3335 5313 8439
Catalytic 4.9 1504 2294 3679 5867
XIRPLUS 6.7 1090 1697 2759 4435
1
Whensizingasystem's24Vsupply,a1Ainrushcurrentwitha1msdurationshouldbeconsideredforeachULTIMA
X5000onthepowersupply.
Assumestransmitterwasorderedwithrelays
25 Ultima X5000 Gas Monitor US
3 Installation

MSA ULTIMA X5000 Specifications

General

Ingress Protection	IP66/67
Sensors	Electrochemical, infrared
Communication	HART, Modbus
Target Gases	Combustible gases, toxic gases, oxygen
Approvals	ATEX, IECEx, UL, CSA, SIL 2
