2-25

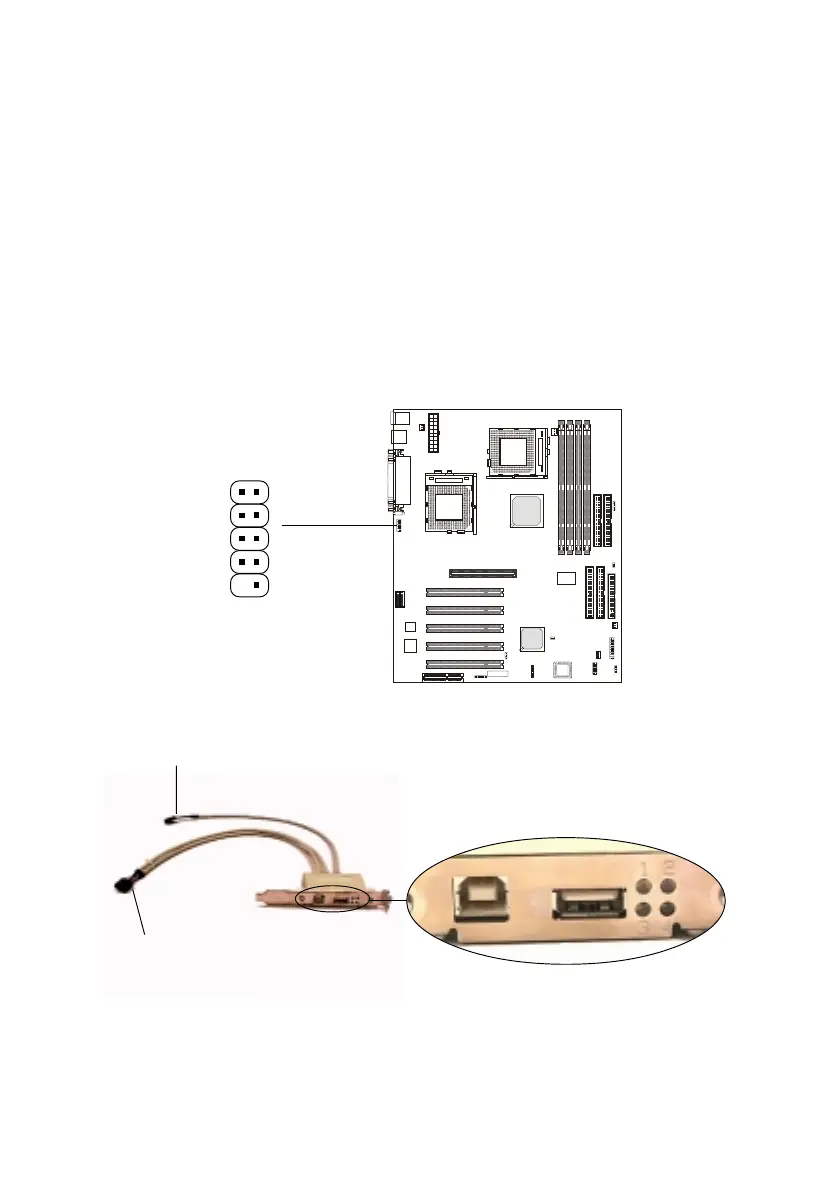

D-Bracket Connector: JP1 (Optional)
If your motherboard comes with JP1 connector, you can connect a D-
Bracket to JP1. D-Bracket is a USB Bracket integrating four LEDs whose
functions are similar to D-LED and allows users to identify system problem
through 16 various combinations of LED signals. For definitions of 16 signal
combinations, refer to page 1-10 D-LED & D-Bracket.
D-Bracket
1
2
3
4
Connected to JP1
Connected to
USB2
1
9
2
10
JP1
