MSI E7505 Master-LS2 - Installing DDR Modules

2-7
Hardware Setup
MSI Reminds You...
Make sure that you install memory modules of the same type and
density on DDR DIMMs “in pairs” -- {DIMM1 & DIMM2}
{DIMM3 & DIMM4}.

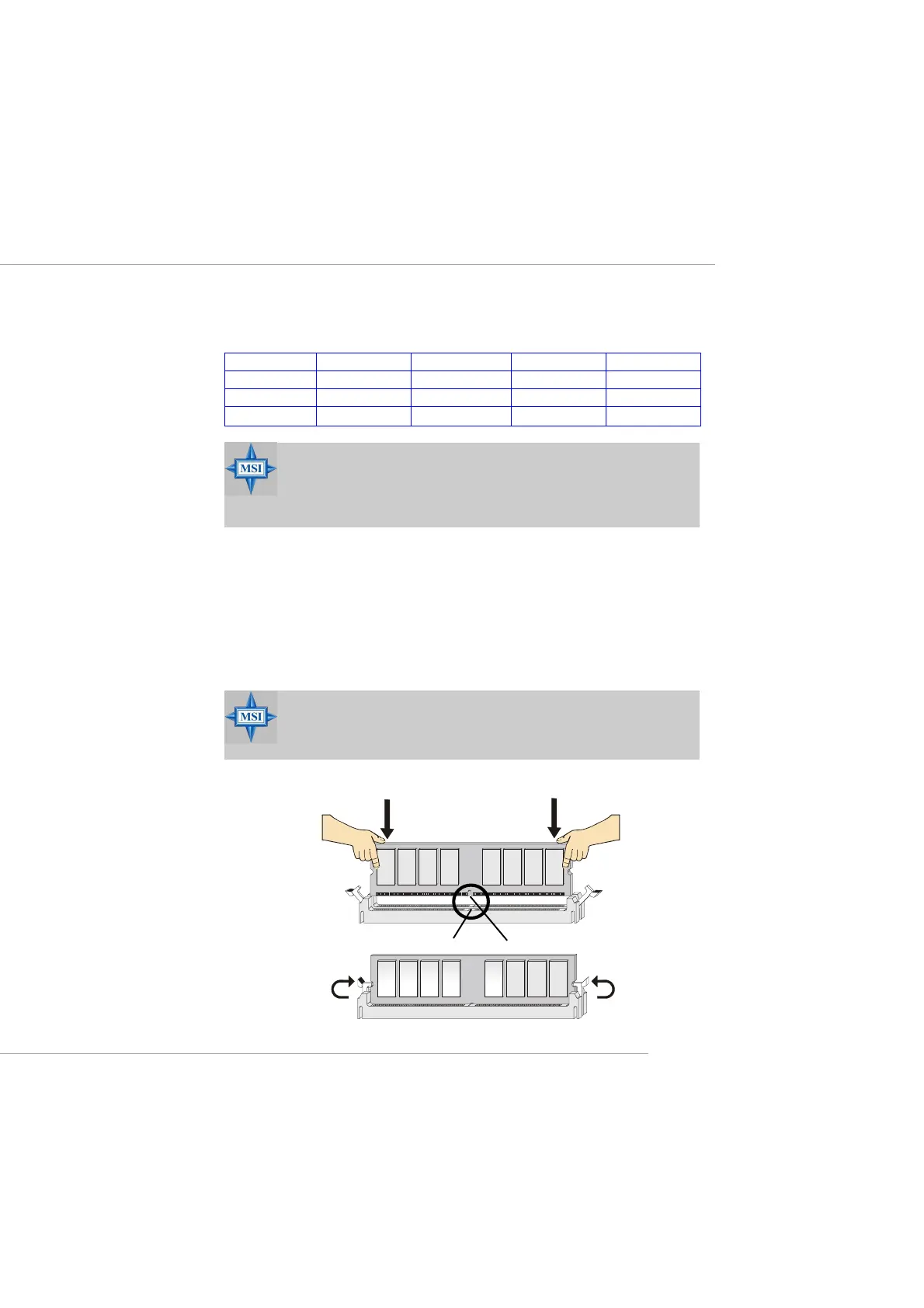

Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The mod-
ule will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in until the golden finger on the memory module is deeply in-
serted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
MSI Reminds You...
You can barely see the golden finger if the module is properly
inserted in the socket.
Volt
Notch
Memory modules can be installed in any combination as follows:
DIMM1 DIMM2 DIMM3 DIMM4 System Density
128MB~2GB 128MB~2GB 256MB~4GB
128MB~2GB 128MB~2GB 256MB~4GB
128MB~2GB 128MB~2GB 128MB~2GB 128MB~2GB 512MB~8GB
