MS-9121 E-ATX Mainboard
System Configure Jumper: J12
The J12 jumper determines which mode the system will enter while
powered on. During Normal Mode, the system will enter the assigned OS as
usual. During Configure Mode, the system will directly enter BIOS setup
utility. This enables you to modify the BIOS configurations. During Recovery
Mode, you have to insert certain boot disk into the floppy drive before power-
ing on the system. After powered on, the system will read the boot disk and
enter DOS. This enables you to update the BIOS with a Flash utility if necessary.

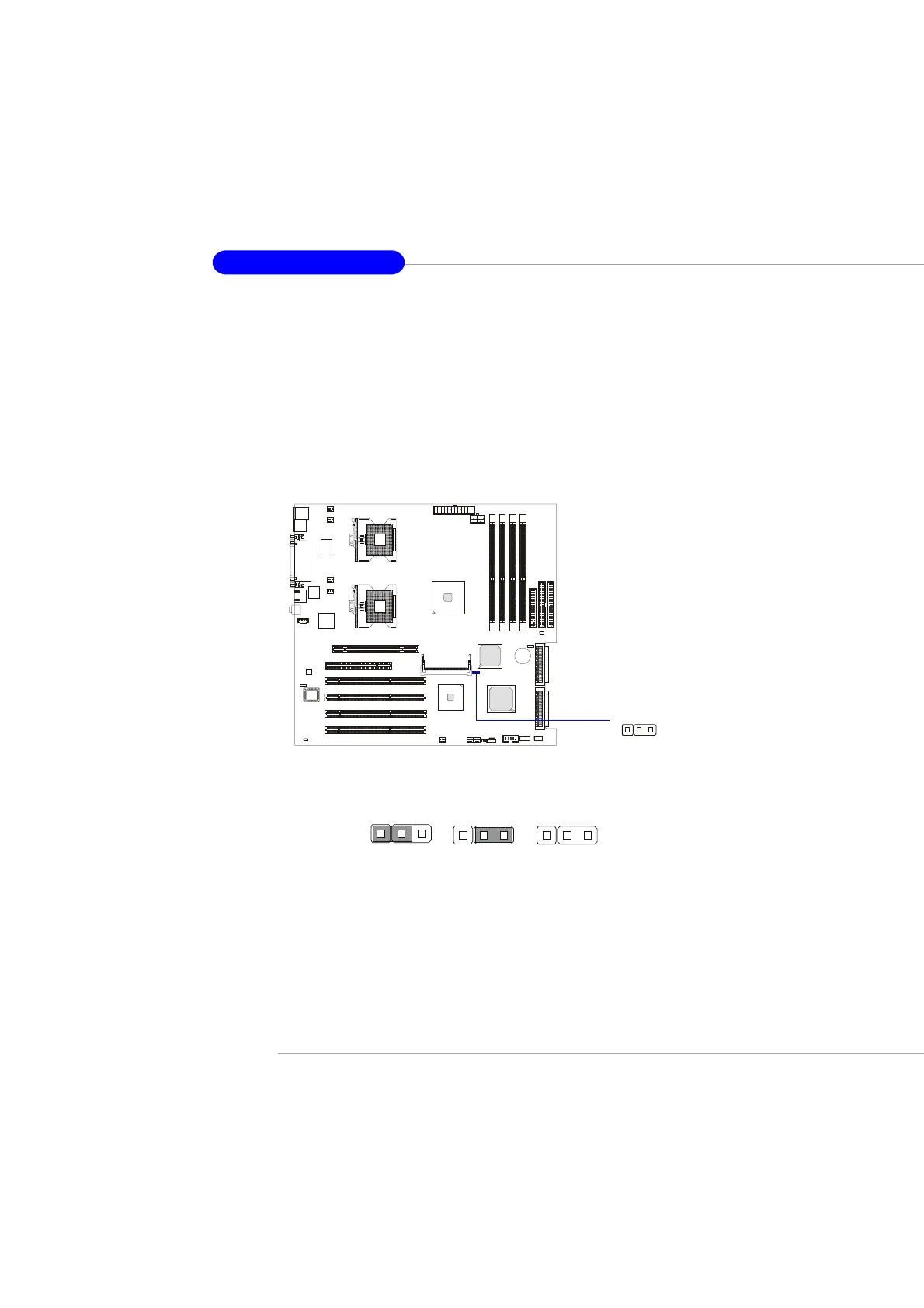

J12
1
Normal Mode Configure Mode Recovery Mode
1
3
1
3
1
3
