Hardware Setup

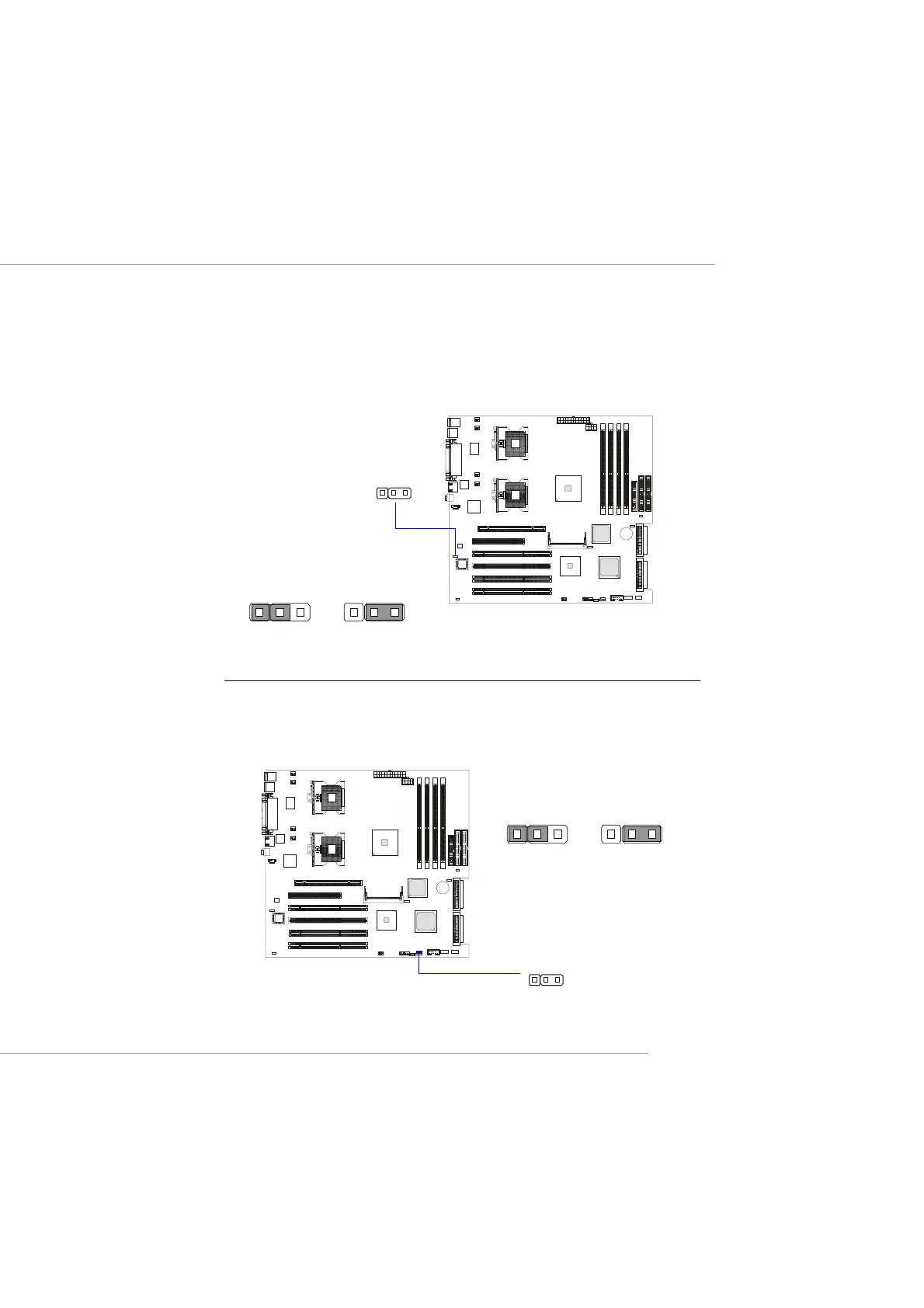

Buzzer Enable/Disable Jumper: J16
This jumper is used to enable/disable the onboard buzzer.
J16
1
Enable BuzzerDisable Buzzer
13 13
BIOS Flash Jumper: J14
This jumper is used to protect the BIOS boot block from virus infection.
When locked, the BIOS boot block cannot be accessed, making BIOS update
impossible. When BIOS update is intended, short pin 2 & 3 to disable BIOS
flash protection.
J14
1
BIOS flash unlockedBIOS flash locked
13 13
