MSI E7505 Master-LS2 - Fan Power Connectors: CPUFAN1;2, SYSFAN1;2;3;4;5

2-16
MS-9121 E-ATX Mainboard
MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.

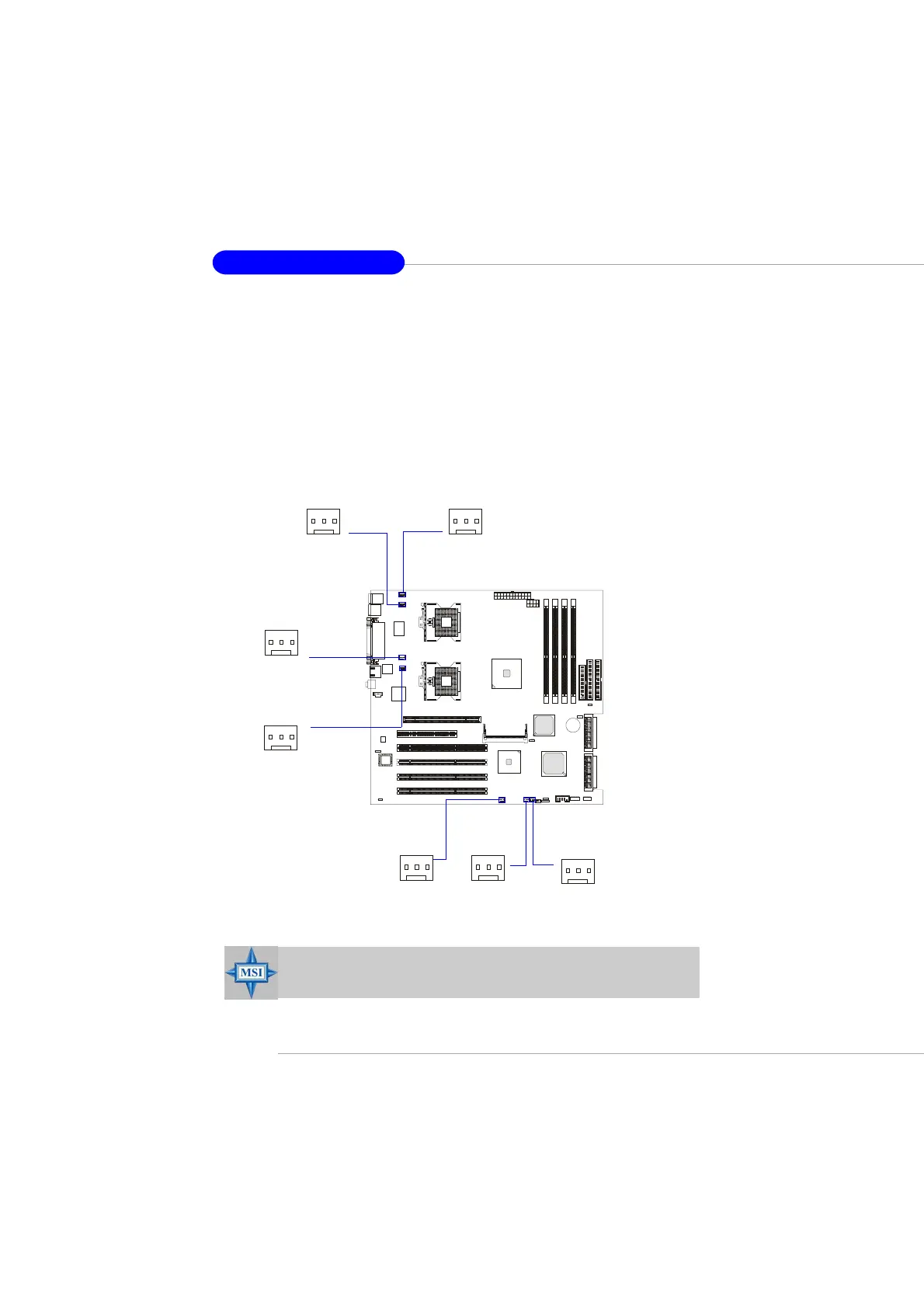

Fan Power Connectors: CPUFAN1/2, SYSFAN1/2/3/4/5
The CPUFAN1/2 (processor fans) and SYSFAN1/2/3/4/5 (system fans)
support system cooling fan with +12V. It supports three-pin head connector.
When connecting the wire to the connectors, always take note that the red
wire is the positive and should be connected to the +12V, the black wire is
Ground and should be connected to GND. If the mainboard has a System
Hardware Monitor chipset on-board, you must use a specially designed fan
with speed sensor to take advantage of the CPU fan control.
SYSFAN1
SENSOR
+12V
GND
CPUFAN1
SENSOR
+12V
GND
CPUFAN2
SENSOR
+12V
GND
SYSFAN2
SENSOR
+12V
GND
SYSFAN5
SENSOR
+12V
GND
SYSFAN4
SENSOR
+12V
GND
SYSFAN3
SENSOR
+12V
GND
