MSI MEG Unify-X Z690 - Rear I;O Panel

13

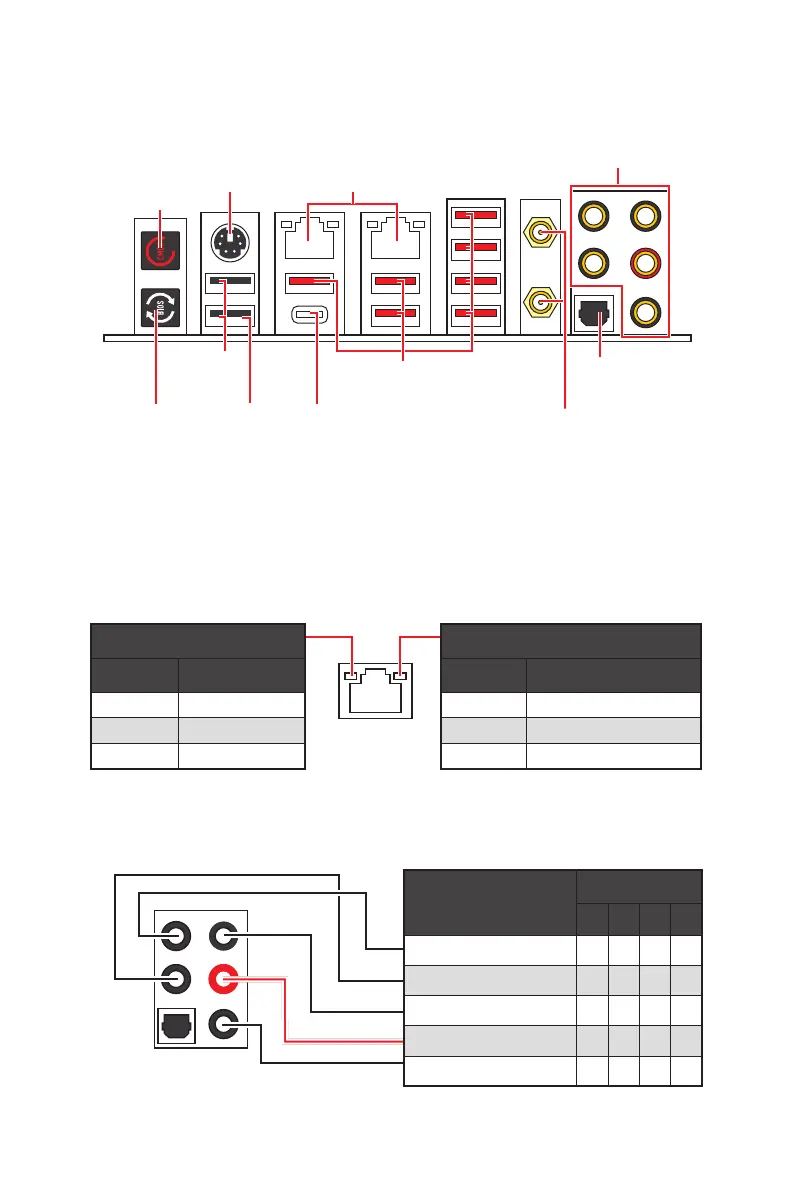

Rear I/O Panel
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
  
Rear Speaker Out   
 
    
Mic In
Blank: empty)
Rear I/O Panel
 Flash BIOS Port/ Button
BIOS Button.
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
Flash BIOS
port
USB 3.2 Gen 2
10Gbps Type A
USB 2.0
Type A
USB 3.2 Gen 2x2

Audio Ports
2.5Gbps LAN
PS/2
Optical

Clear CMOS
button

connectors
Flash BIOS
Button
