MSI MEG Unify-X Z690 - JAUD1: Front Audio Connector; JTBT1: Thunderbolt Add-On Card Connector; W_FLOW1: Water Flow Meter Connector

34
Overview of Components

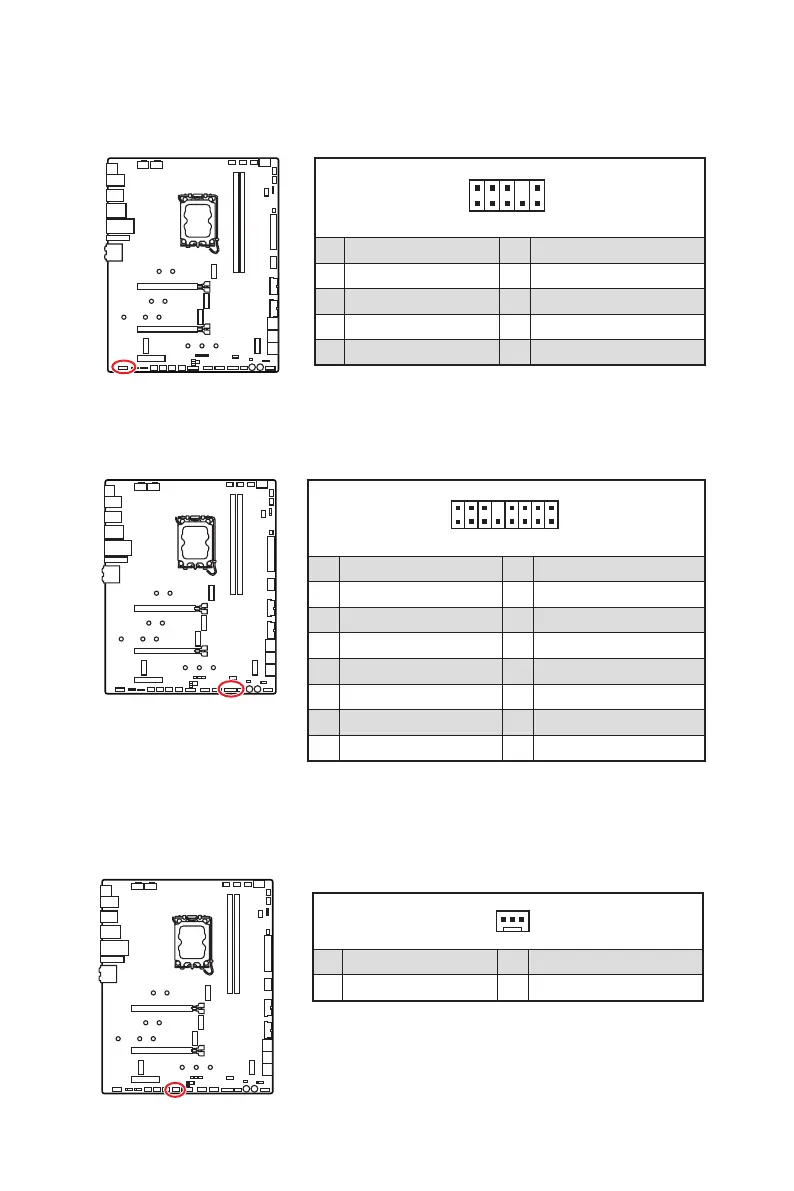

JTBT1: Thunderbolt Add-on Card Connector

1
2 16
15
1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ
3  4 TBT_S0IX_ENTRY_ACK
5  6 TBT_PSON_OVERRIDE_N
7  8 No Pin
9 Ground 10 SMBCLK_VSB
11  12 SMBDATA_VSB
13 TBT_RTD3_PWR_EN 14 Ground
15  16 
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
W_FLOW1: Water Flow Meter Connector
This connector allows you to connect a water flow meter to monitor the flow rate of
your liquid cooling system.
1
1 Ground 3 WFLOW IN
2 WFLOW PWR
