MSI MEG Unify-X Z690 User Manual

22

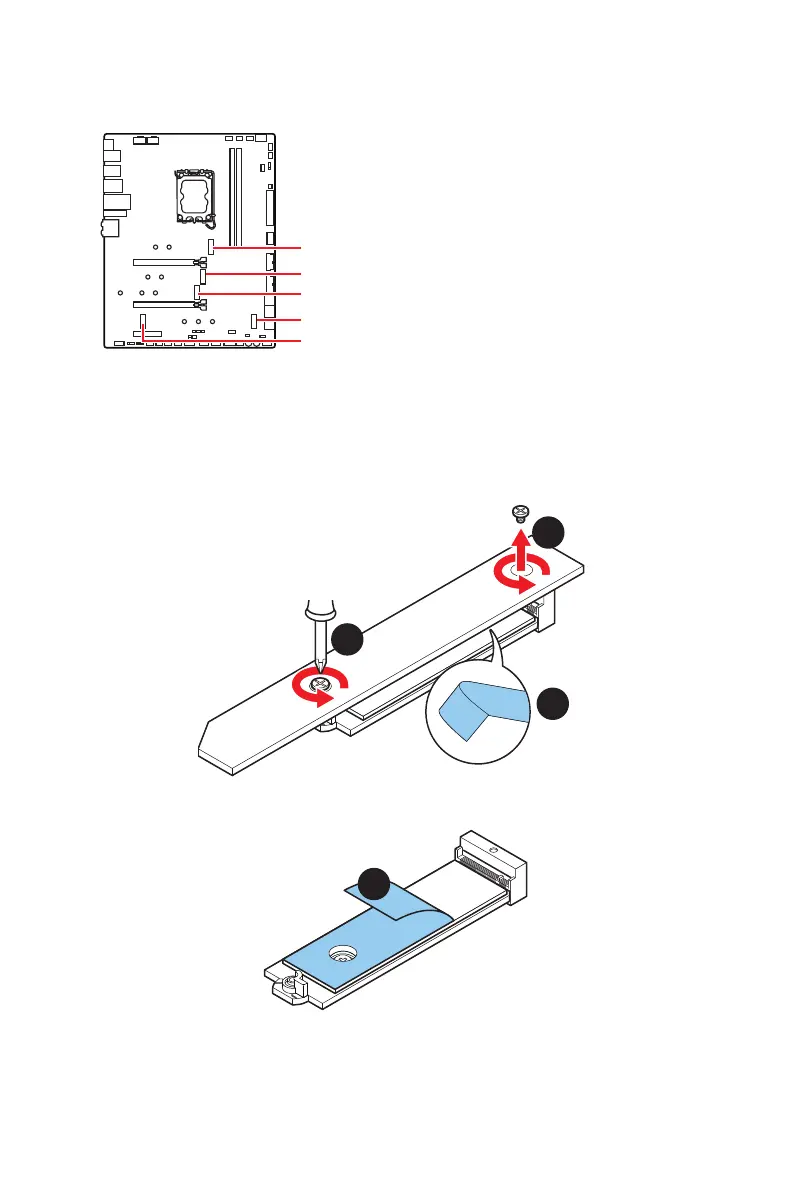

Overview of Components
M2_1~5: M.2 Slots (Key M)
M2_1
M2_2
M2_5
M2_4
M2_3

Important
 Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
 Intel® Optane™ Memory Ready for M2_2~5
slots.
M2_1, M2_2 slots Installation
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
1
1
3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
3
