Übersicht der Komponenten
M2_1~5: M.2 Steckplätze (Key M)
M2_1
M2_2
M2_5
M2_4
M2_3
Wichtig
Intel® RST unterstützt nur PCIe M.2 SSD mit
UEFI ROM.
Intel® Optane™ Memory ist nur für M2_2~5
Steckplätze.

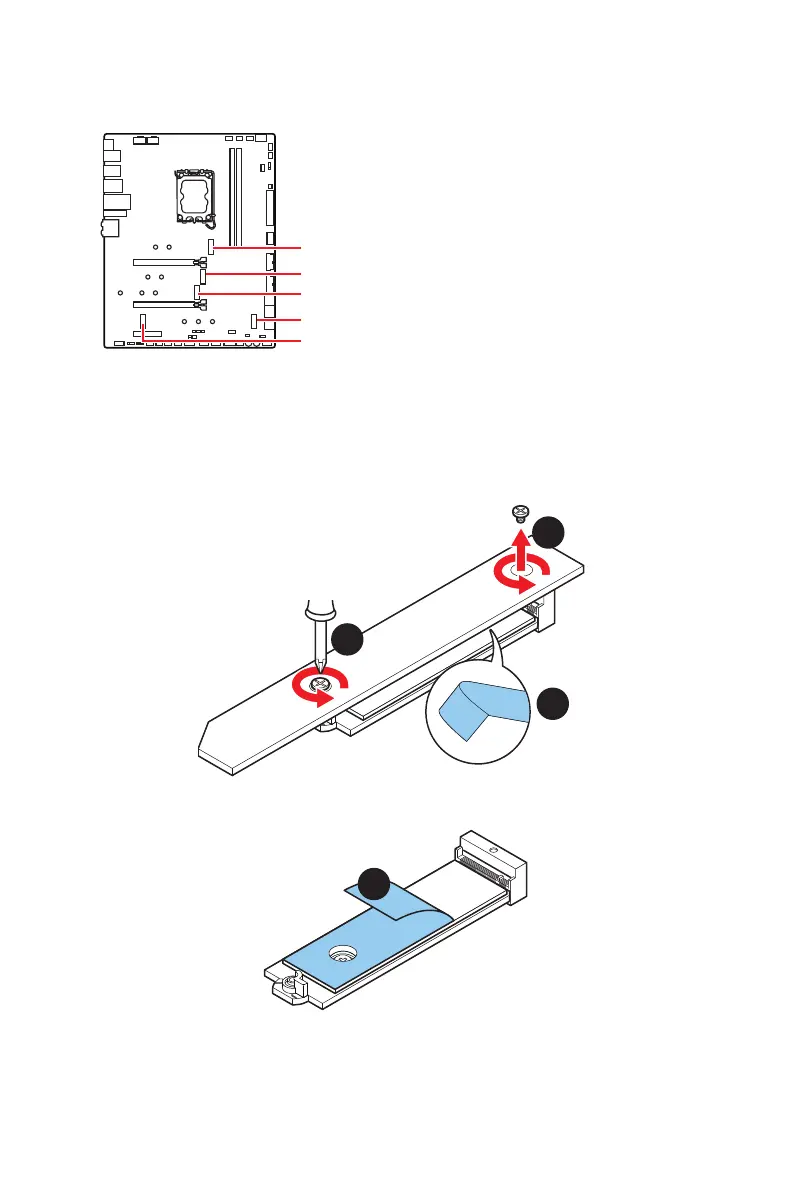

Installation eines M2_1, M2_2 Steckplatzes
1. 
2. 
Wärmeleitpads.
2
1
1
3. Entfernen Sie die Schutzfolie von den M.2 Wärmeleitpadsthe des M.2 Kühlkörpers.
3
