26
Overview of Components
M2_4, M2_5 slots installation

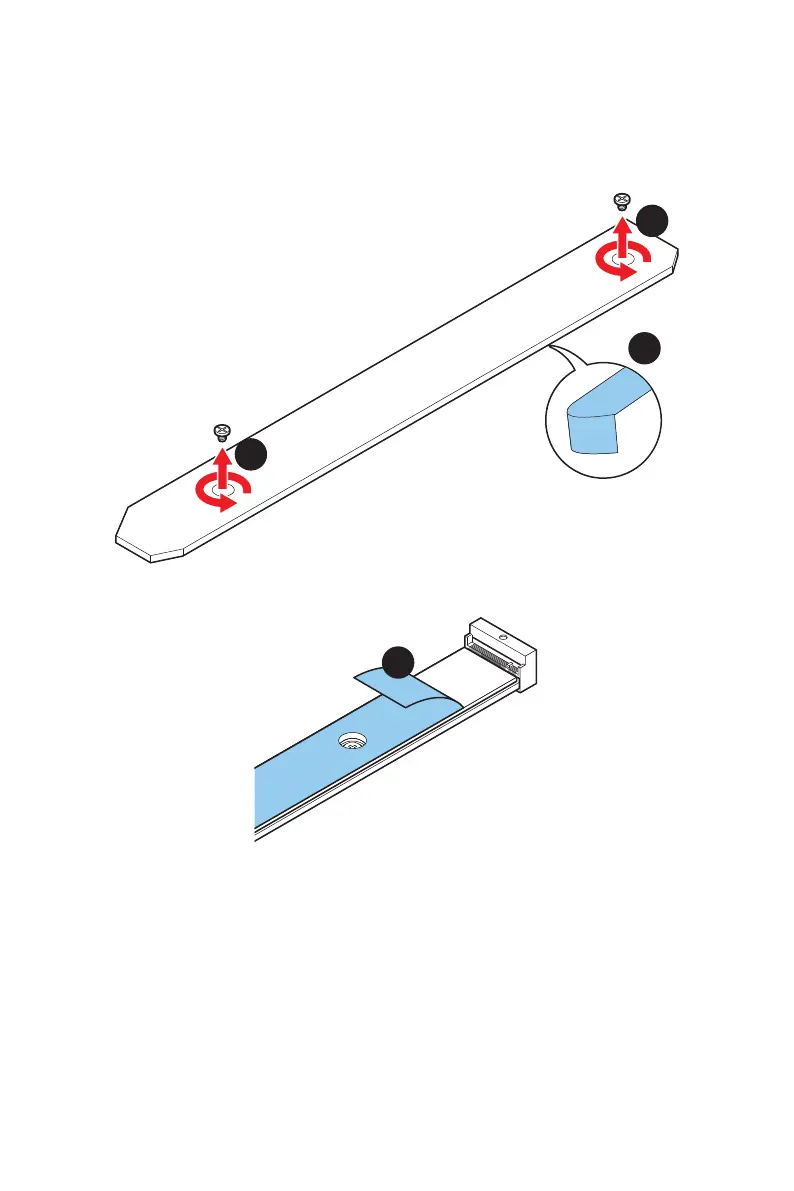

1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
1
1
2
3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
3
