MSI MS7797 - USB 2.0 Expansion Connectors

1-20
Getting Started

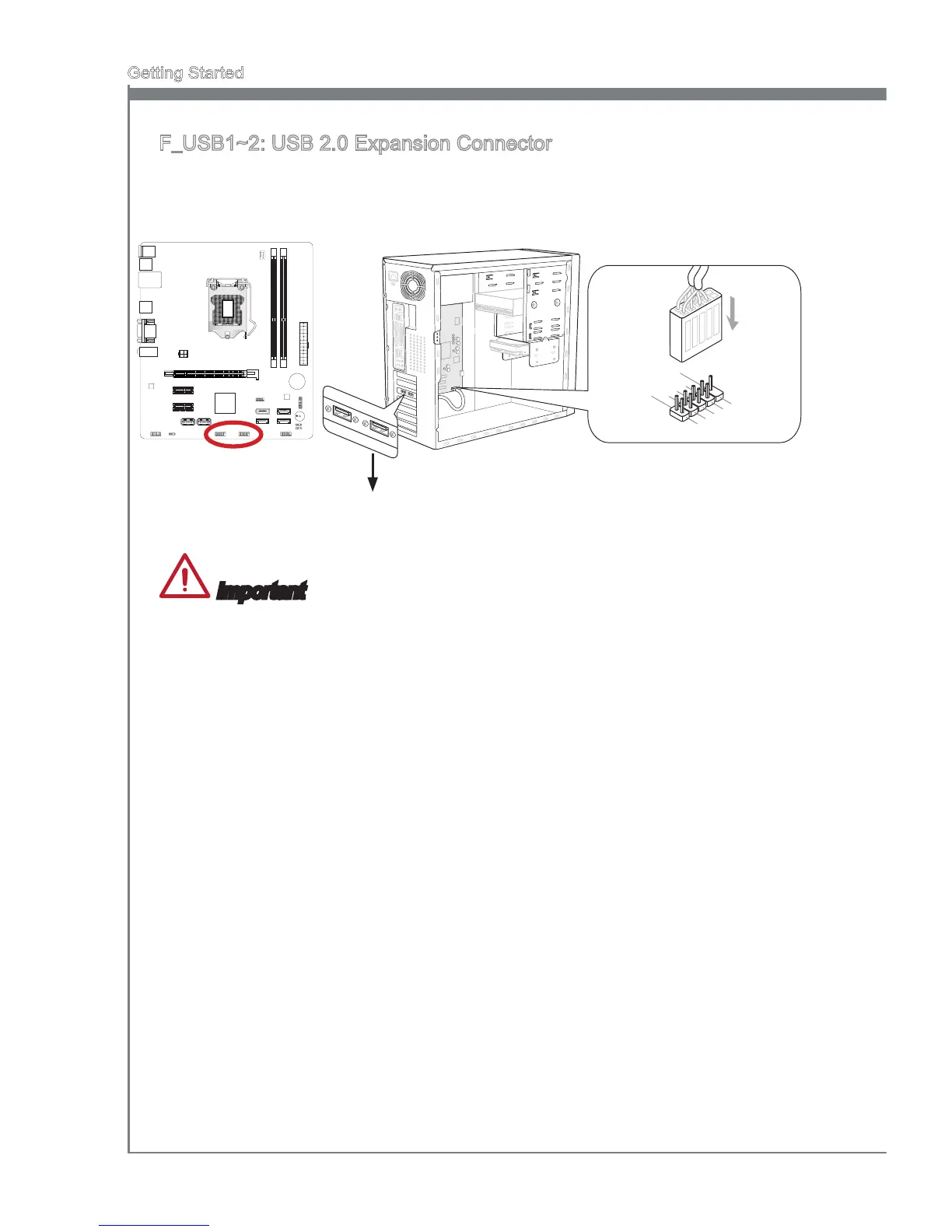

F_USB1~2: USB 2.0 Expansion Connector
This connector is designed for connecting high-speed USB peripherals such as USB
HDDs, digital cameras, MP3 players, printers, modems, and many others.
115V
1.VC
C
3.USB0
-
10.NC
5.USB0
+
7
.Ground
9.No
Pin
8
.Ground
6.USB1
+
4.USB1
-
2.VC
C
* The MB layout in this 󰘰gure is for reference only.
USB 2.0 Bracket (optional)
Important
Note that the VCC and GND pins must be connected correctly to avoid possible
damage.
