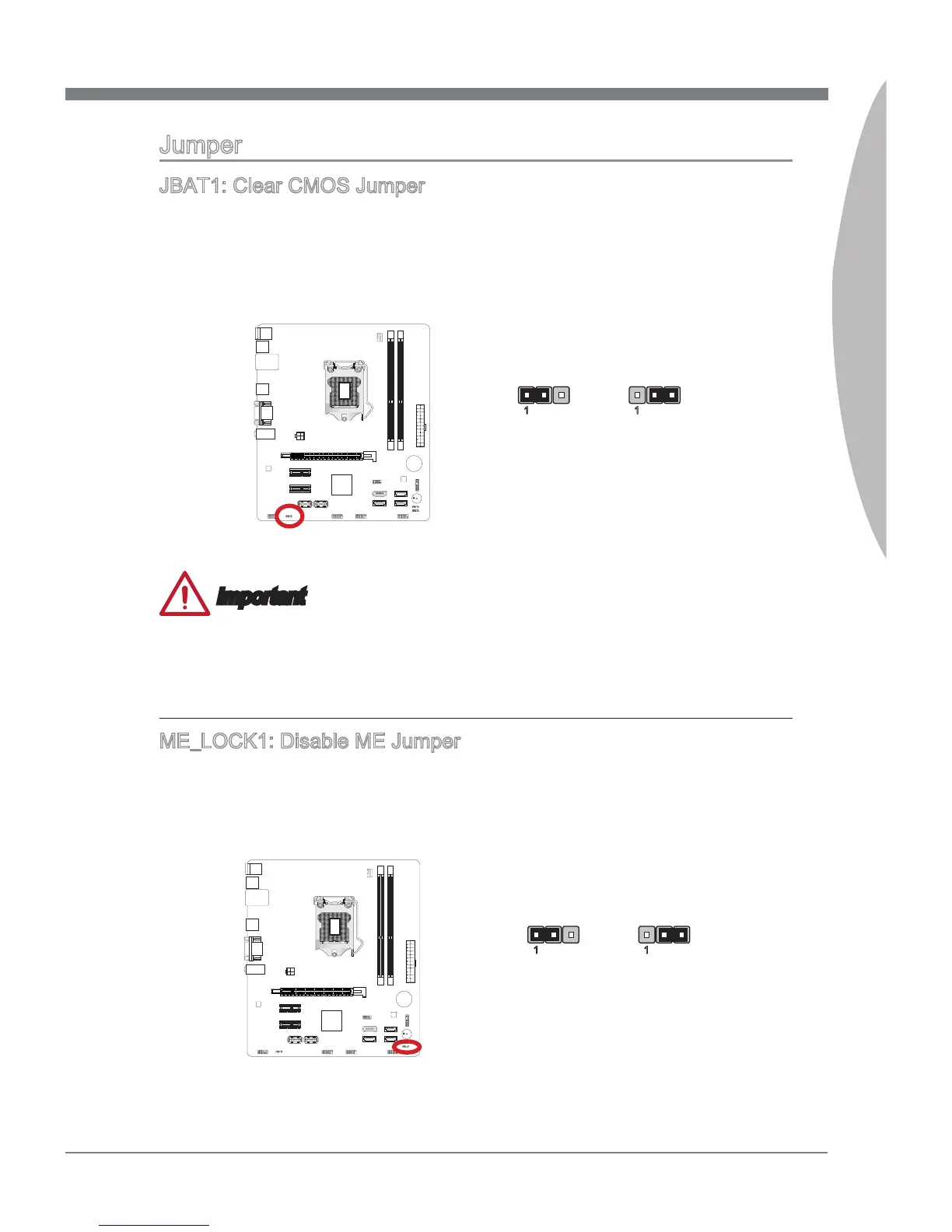

Jumper
JBAT1: Clear CMOS Jumper
There is CMOS RAM onboard that is external powered from a battery located on the
mainboard to save system con󰘰guration data. With the CMOS RAM, the system can
automatically boot into the operating system (OS) every time it is turned on. If you want
to clear the system con󰘰guration, set the jumpers to clear the CMOS RAM.
Keep Data Clear Data
1 1
Important
You can clear the CMOS RAM by shorting this jumper while the system is o󰘯. Afterwards,
open the jumper . Do not clear the CMOS RAM while the system is on because it will
damage the mainboard.
ME_LOCK1: Disable ME Jumper
Intel
®
Management Engine (ME) is an embedded microcontroller located in Intel chipset.
It provides Intel
®
AMT, ASF for IT management. If you want to disable the Intel ME
feature, set the jumper to desable it.
Normal Disable ME
1 1
