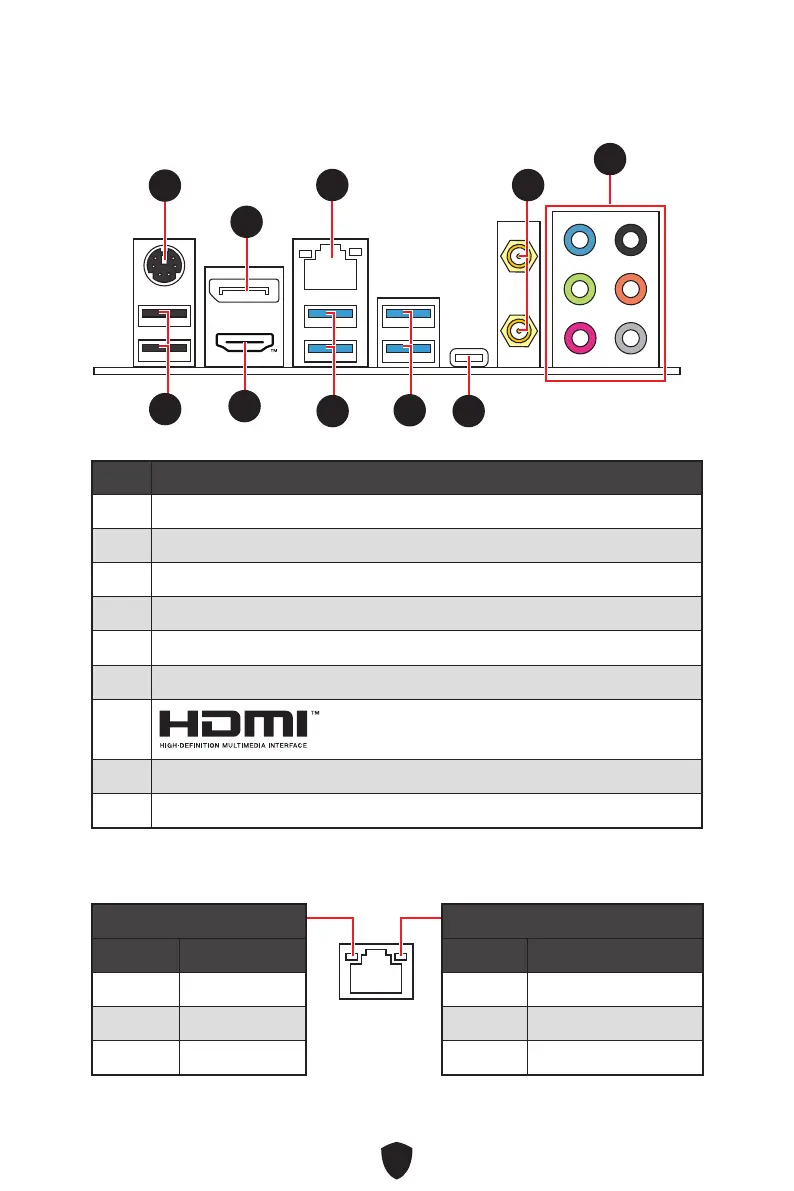

Back Panel Connectors
Item Description
1 PS/2 Mouse/Keyboard port
2 DisplayPort port
3 2.5 Gbps LAN port
4 Wi-Fi Antenna connectors
5 Audio ports
6 USB 2.0 Type-A ports (From Z690 chipset)
7
8 USB 3.2 Gen 1 5Gbps Type-A ports (From Z690 chipset)
9 USB 3.2 Gen 2x2 20Gbps Type-C port (From Z690 chipset)
22
11
33
88
88
44
66
77
99
55
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Speed
Off 10 Mbps
Green 100/1000 Mbps
Orange 2.5 Gbps

MSI PRO Z690-P WIFI Specifications

General

Chipset	Intel Z690
Form Factor	ATX
Socket	LGA 1700
Memory Slots	4 x DIMM
Max Memory	128GB
PCIe 5.0 x16 slots	1
PCIe 3.0 x16 slots	1
PCIe 3.0 x1 slots	2
M.2 Slots	4
SATA Ports	6
USB 3.2 Gen 2x2 Ports	1
USB 3.2 Gen 2 Ports	3
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC897
USB 2.0 Ports	6
Network	2.5G LAN
Wi-Fi	Wi-Fi 6
RAID Support	0, 1, 5, 10
