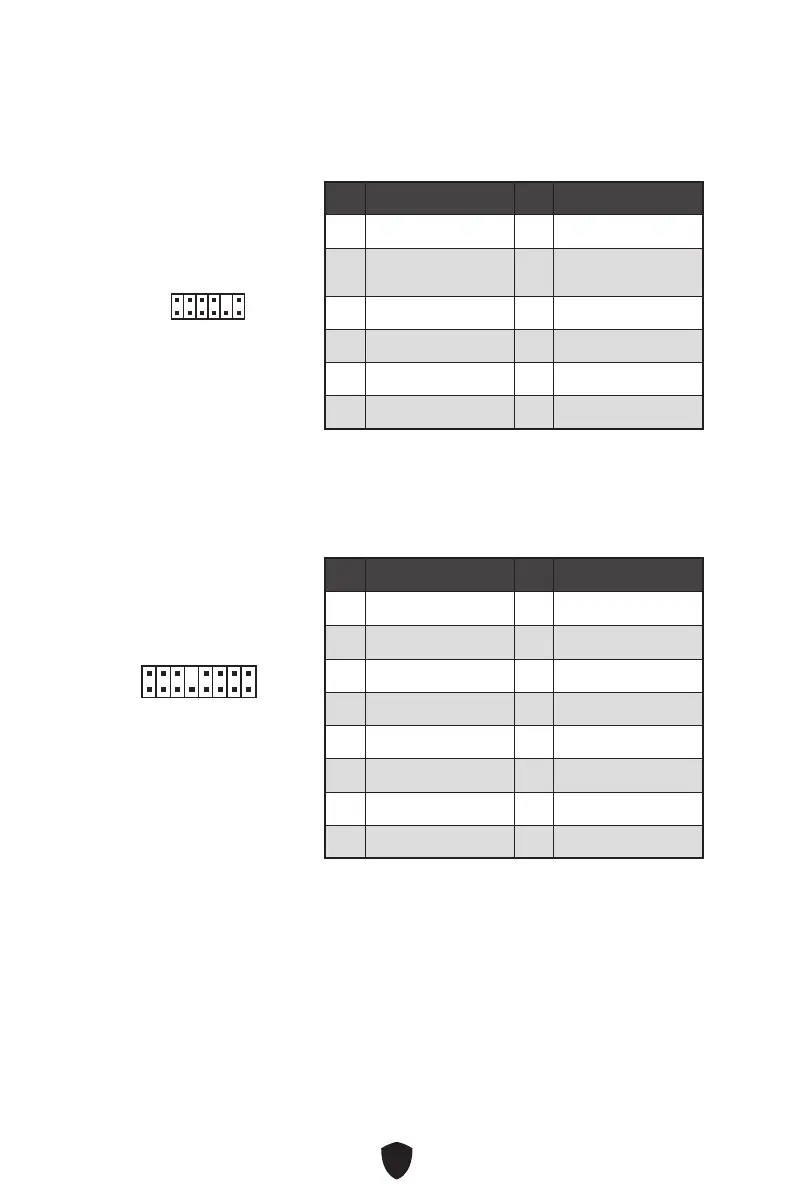

22
󻢚󻊺󼳖󺼗󼼢
󼕦󼳖󺼗󼼢󻂆󻢚󻊺󼏂󼏢󺪢󻈛󻂺󻃖󼖂󻼪󽍎󺺦󼒛󺫮󻺞󼒛󻨛󻪇󼔲
󻫦󼌺󽋾󻖝󽇮󻼖󻡷󻼎󻝮󼨪󼙢󽍊󻼪󼒆
󽌲 󼃒󽐪󼕦󻝶 󽌲 󼃒󽐪󼕦󻝶
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out
(SPI Data)
4
Master Out Slave In
(SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
1
2 12
11
󼅞󻅆󻫮󽂪󼮆󺧲󼱦󻋎󼳖󺼗󼼢
󼕦󼳖󺼗󼼢󻝮󻺞󼒛󽍊󼏞󻼒󼻏󼏂󻌢󻕮󼮆󺧲󼅞󻅆󻫮󽂪󼱦󻋎󼐲󼏢󺪢󽍒󼀊󼕺󼂧󻂺󻃖
1
2 16
15
󽌲 󼃒󽐪󼕦󻝶 󽌲 󼃒󽐪󼕦󻝶
1 TBT_Force_PWR 2 TBT_S0IX_Entry_REQ
3 TBT_CIO_Plug_Event# 4 TBT_S0IX_Entry_ACK
5 SLP_S3#_TBT 6 TBT_PSON_Override_N
7 SLP_S5#_TBT 8 Net Name
9 Ground 10 SMBCLK_VSB
11 DG_PEWake 12 SMBDATA_VSB
13 TBT_RTD3_PWR_EN 14 Ground
15 TBT_Card_DET_R# 16 PD_IRQ#
