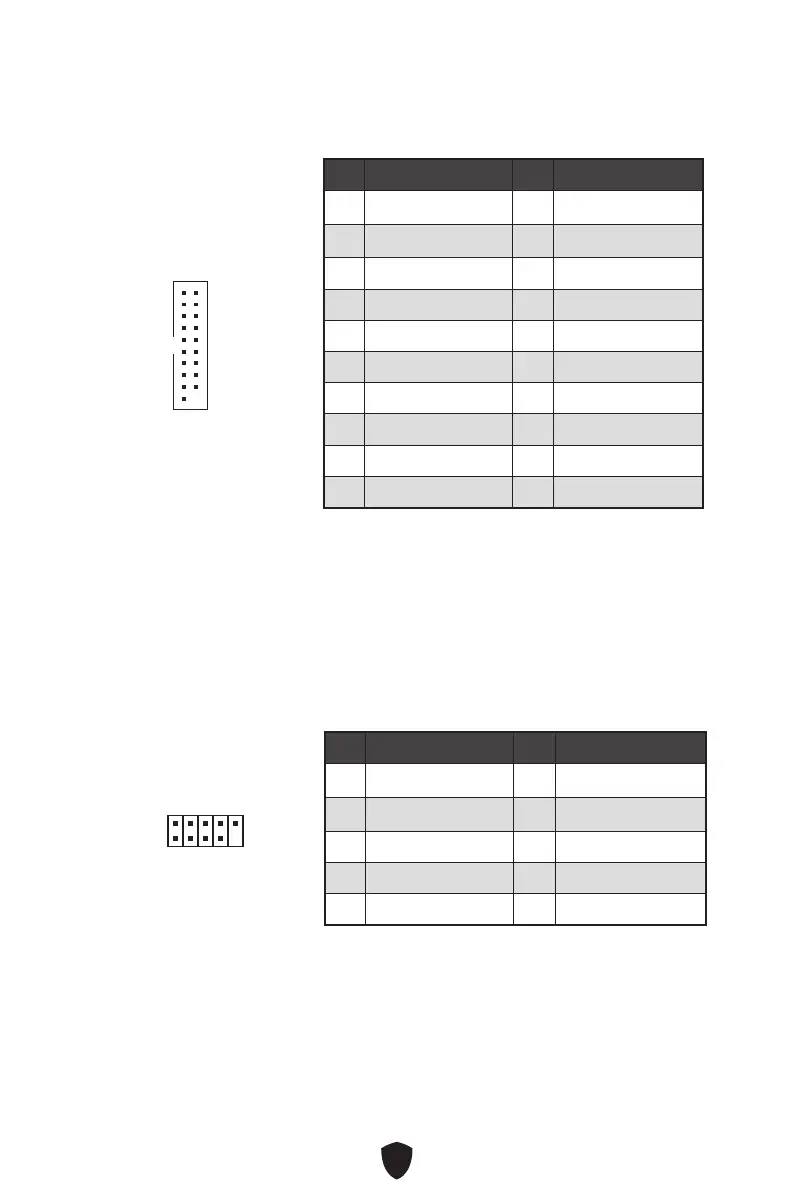

21

󳲜󶬖
󴳇󳠴
󹩙󴽥󳘗󳲜󶬖󴨟󳲜󶬖󲝉󲁹󴡇󲑟󳵊󱫮

 󱥯󲁢󲁿  󱥯󲁢󲁿
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
10 11
20

󳲜󶬖
󴳇󳠴
󳘗󳲜󶬖󴨟󳲜󶬖󲝉󲁹󴡇󲑟󳵊
󱫮 
󱱨󱯱󹩙
 
 󱥯󲁢󲁿  󱥯󲁢󲁿
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
1
2 10
9

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI PRO Z690-P WIFI and is the answer not in the manual?

MSI PRO Z690-P WIFI Specifications

General IconGeneral
ChipsetIntel Z690
Form FactorATX
SocketLGA 1700
Memory Slots4 x DIMM
Max Memory128GB
PCIe 5.0 x16 slots1
PCIe 3.0 x16 slots1
PCIe 3.0 x1 slots2
M.2 Slots4
SATA Ports6
USB 3.2 Gen 2x2 Ports1
USB 3.2 Gen 2 Ports3
BluetoothBluetooth 5.2
AudioRealtek ALC897
USB 2.0 Ports6
Network2.5G LAN
Wi-FiWi-Fi 6
RAID Support0, 1, 5, 10
