MSI PRO Z690-P WIFI User Manual

21
󳲝󲁅
󸶓󱝬󳲝󲁅󱯬󸜡󳞄󲖬󱶜󶹌󹬻󴍇󱚗󴌟󸶚󳲝󶖒󲁅

󴳈󳠵
󸝠󴳈󳠵󽚟󵭳󴽦󲅈󳲝󲖵󹛳󷆧󳘗󹴆󴨟󶃥󸶚󳲝󱟨󸼽󱰁󲁗󷅮󵷜󳰤󲗥
󹛳󷆧 󱥰󲁣󲂀󶎊 󹛳󷆧 󱥰󲁣󲂀󶎊

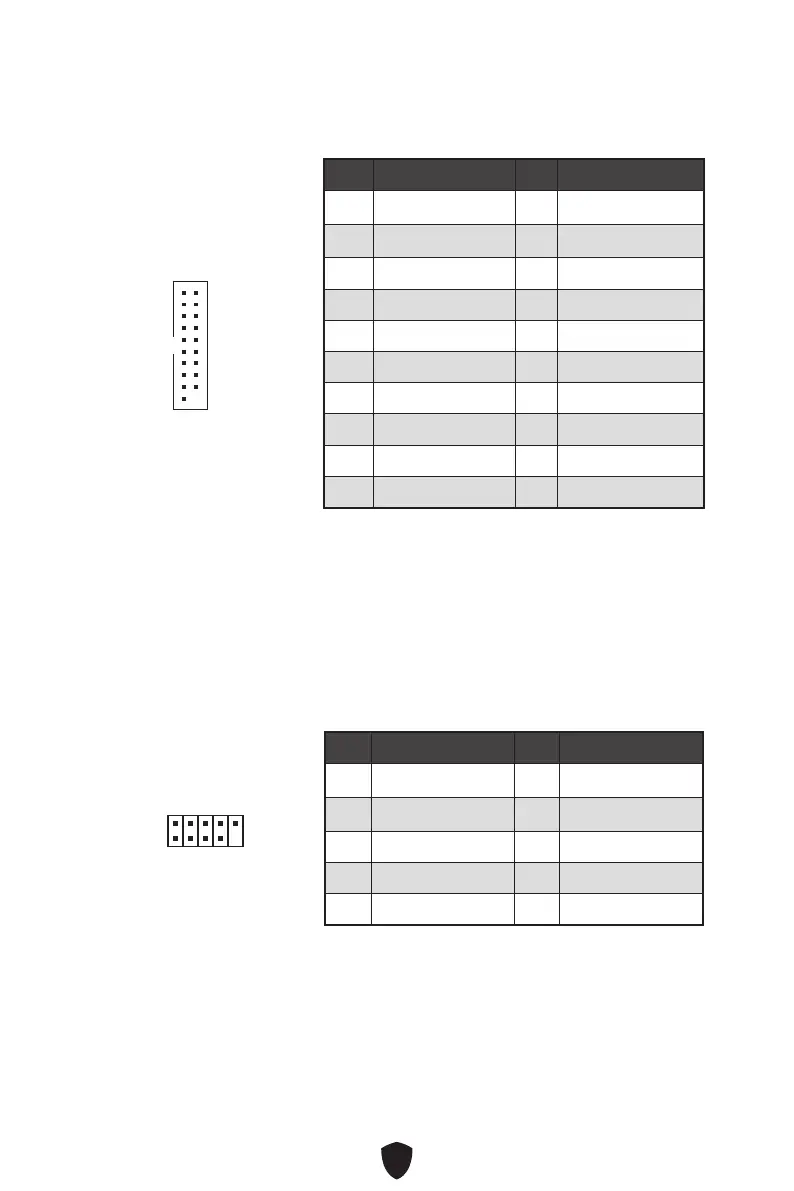

1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
10 11
20
󳲝󲁅
󸶓󱝬󳲝󲁅󱯬󸜡󳞄󲖬󱶜󶹌󹬻󴍇󱚗󴌟󸶚󳲝󶖒󲁅

󴳈󳠵
 󸝠󴳈󳠵󽚟󲅈󳲝󲖵󹛳󷆧󳘗󹴆󴨟󶃥󸶚󳲝󱟨󸼽󱰁󲁗󷅮󵷜󳰤󲗥
 󱛝󱝏󲽀󳞄󵷜󽚟󲅈󸸵󸵦󶖒󲁅󸶗󸂈󱯲󵭳󽚟󸝠󲹁󸅗󲹮󵭡󶎴
󳏜
󹛳󷆧 󱥰󲁣󲂀󶎊 󹛳󷆧 󱥰󲁣󲂀󶎊
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
1
2 10
9

MSI PRO Z690-P WIFI Specifications

General

Chipset	Intel Z690
Form Factor	ATX
Socket	LGA 1700
Memory Slots	4 x DIMM
Max Memory	128GB
PCIe 5.0 x16 slots	1
PCIe 3.0 x16 slots	1
PCIe 3.0 x1 slots	2
M.2 Slots	4
SATA Ports	6
USB 3.2 Gen 2x2 Ports	1
USB 3.2 Gen 2 Ports	3
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC897
USB 2.0 Ports	6
Network	2.5G LAN
Wi-Fi	Wi-Fi 6
RAID Support	0, 1, 5, 10
