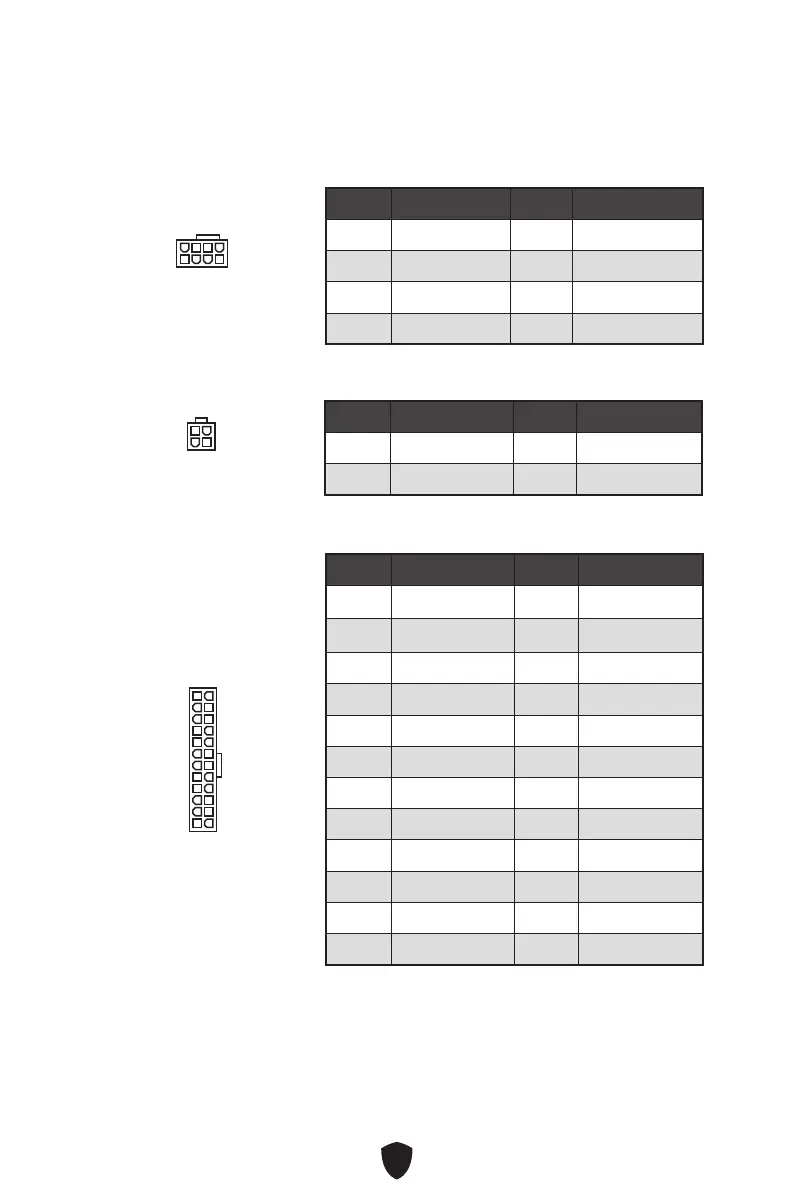

18





CPU_PWR1
   
1 Ground 2 Ground
3 Ground 4 Ground
5 +12V 6 +12V
7 +12V 8 +12V
ATX_PWR1
   
1 +3.3V 2 +3.3V
3 Ground 4 +5V
5 Ground 6 +5V
7 Ground 8 PWR OK
9 5VSB 10 +12V
11 +12V 12 +3.3V
13 +3.3V 14 -12V
15 Ground 16 PS-ON#
17 Ground 18 Ground
19 Ground 20 Res
21 +5V 22 +5V
23 +5V 24 Ground
5
4 1
8
CPU_PWR1
24
131
12
ATX_PWR1
3
2 1
4
CPU_PWR2
CPU_PWR2
   
1 Ground 2 Ground
3 +12V 4 +12V

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI PRO Z690-P WIFI and is the answer not in the manual?

MSI PRO Z690-P WIFI Specifications

General IconGeneral
ChipsetIntel Z690
Form FactorATX
SocketLGA 1700
Memory Slots4 x DIMM
Max Memory128GB
PCIe 5.0 x16 slots1
PCIe 3.0 x16 slots1
PCIe 3.0 x1 slots2
M.2 Slots4
SATA Ports6
USB 3.2 Gen 2x2 Ports1
USB 3.2 Gen 2 Ports3
BluetoothBluetooth 5.2
AudioRealtek ALC897
USB 2.0 Ports6
Network2.5G LAN
Wi-FiWi-Fi 6
RAID Support0, 1, 5, 10
