MSI PRO Z690-P WIFI User Manual

14

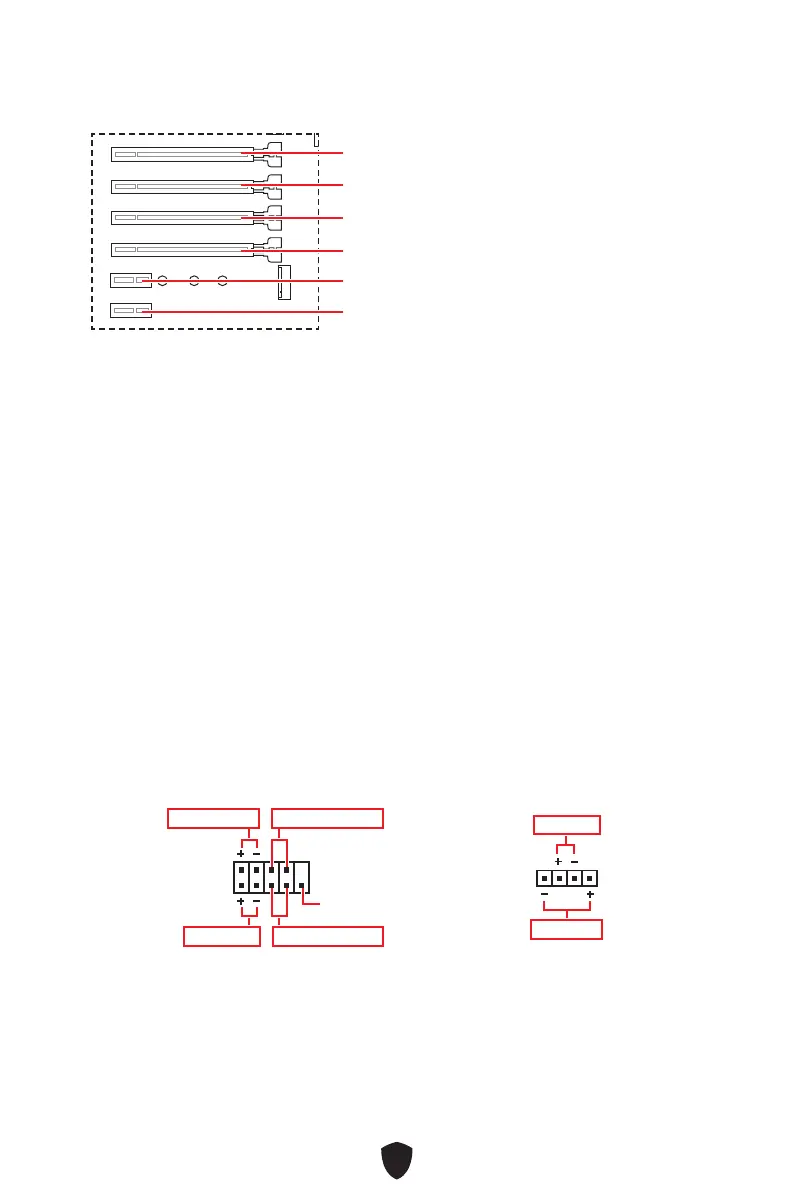

BAT1

PCI_E1
PCI_E2
PCI_E3
PCI_E5
PCI_E6
PCI_E4









1
2 10
9
Power LED
Reserved
Power Switch
JFP1
Reset SwitchHDD LED
1
JFP2
Buzzer
Speaker








 
MSI Graphics Card Bolster

 
PCI_E1.
 




MSI PRO Z690-P WIFI Specifications

General

Chipset	Intel Z690
Form Factor	ATX
Socket	LGA 1700
Memory Slots	4 x DIMM
Max Memory	128GB
PCIe 5.0 x16 slots	1
PCIe 3.0 x16 slots	1
PCIe 3.0 x1 slots	2
M.2 Slots	4
SATA Ports	6
USB 3.2 Gen 2x2 Ports	1
USB 3.2 Gen 2 Ports	3
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC897
USB 2.0 Ports	6
Network	2.5G LAN
Wi-Fi	Wi-Fi 6
RAID Support	0, 1, 5, 10
