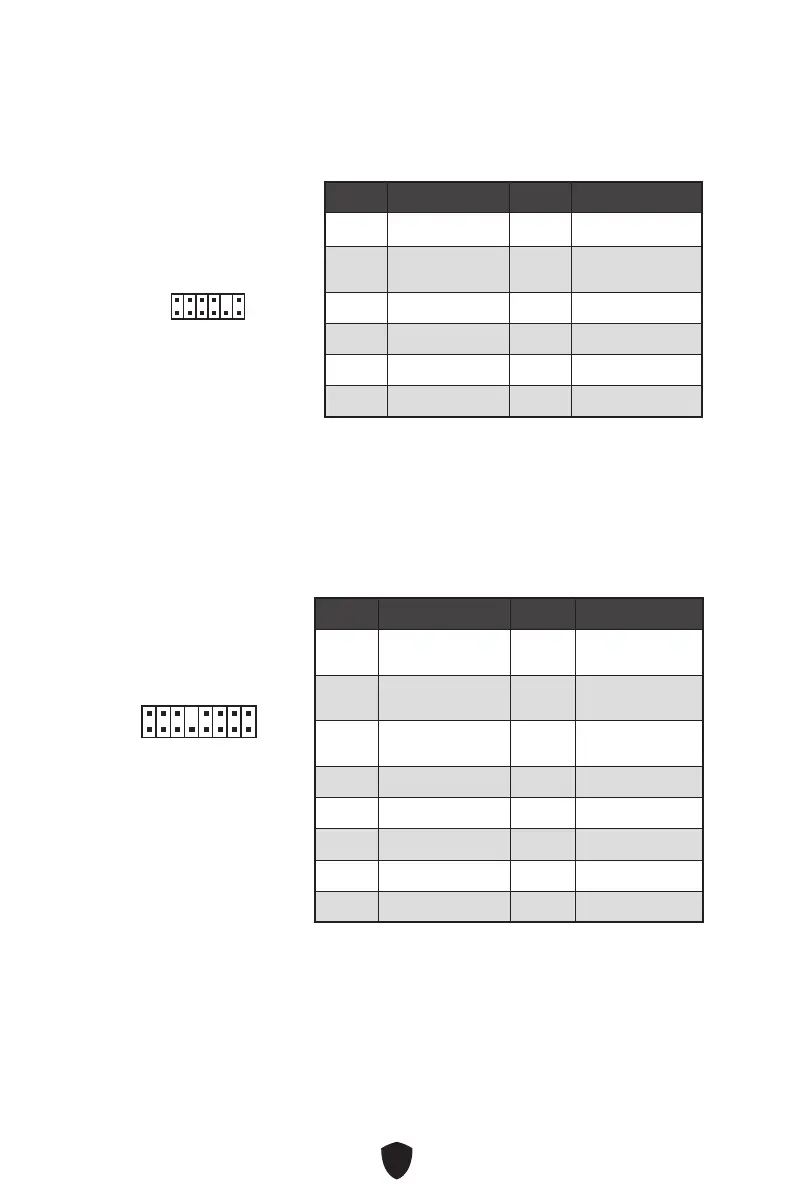

22



   
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out
(SPI Data)
4
Master Out Slave In
(SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
1
2 12
11

Thunderbolt

Thunderbolt.
1
2 16
15
   
1 TBT_Force_PWR 2
TBT_S0IX_Entry_
REQ
3
TBT_CIO_Plug_
Event#
4
TBT_S0IX_Entry_
ACK
5 SLP_S3#_TBT 6
TBT_PSON_
Override_N
7 SLP_S5#_TBT 8 Net Name
9 Ground 10 SMBCLK_VSB
11 DG_PEWake 12 SMBDATA_VSB
13 TBT_RTD3_PWR_EN 14 Ground
15 TBT_Card_DET_R# 16 PD_IRQ#

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI PRO Z690-P WIFI and is the answer not in the manual?

MSI PRO Z690-P WIFI Specifications

General IconGeneral
ChipsetIntel Z690
Form FactorATX
SocketLGA 1700
Memory Slots4 x DIMM
Max Memory128GB
PCIe 5.0 x16 slots1
PCIe 3.0 x16 slots1
PCIe 3.0 x1 slots2
M.2 Slots4
SATA Ports6
USB 3.2 Gen 2x2 Ports1
USB 3.2 Gen 2 Ports3
BluetoothBluetooth 5.2
AudioRealtek ALC897
USB 2.0 Ports6
Network2.5G LAN
Wi-FiWi-Fi 6
RAID Support0, 1, 5, 10
