P90 Series Vertical Shaft Engines
60

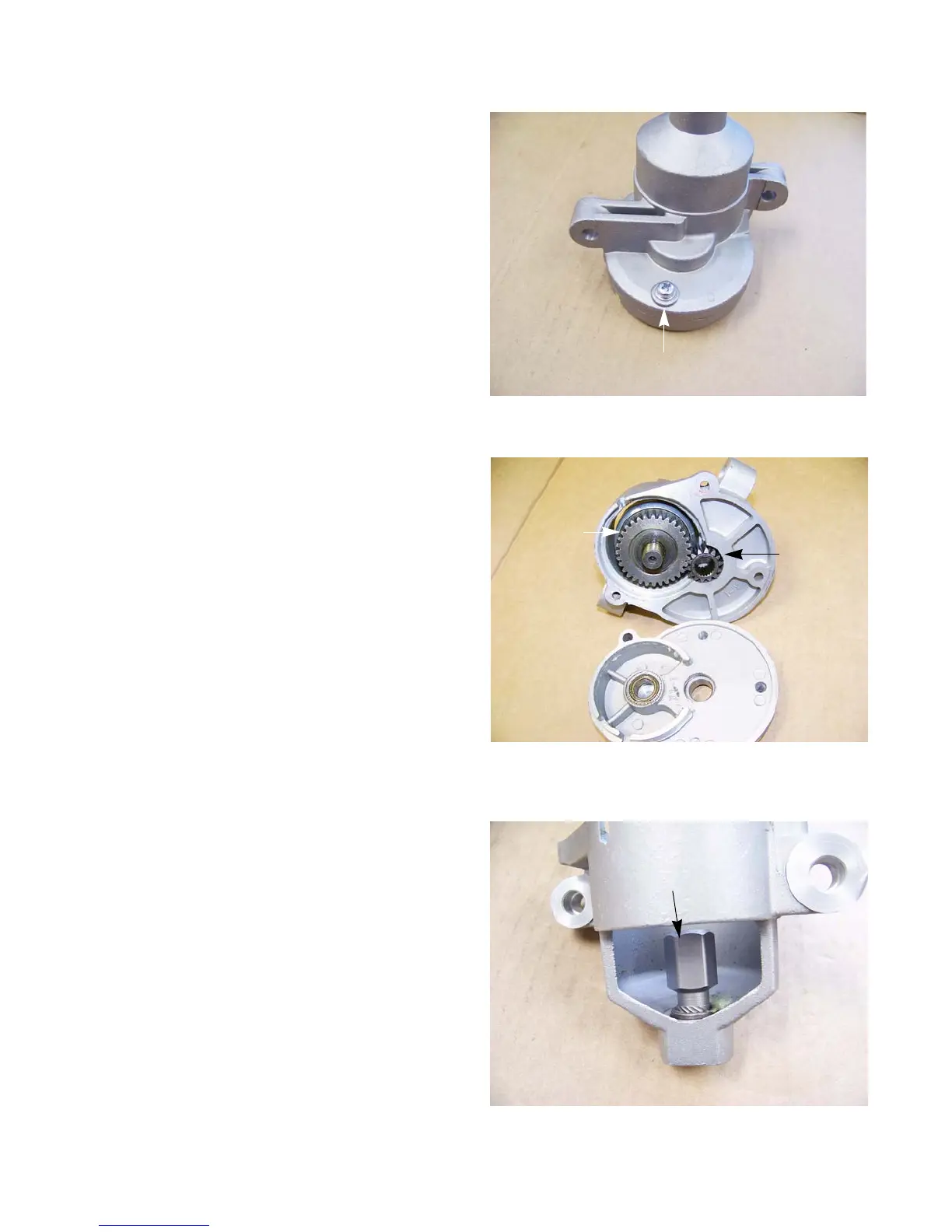

17. Remove the screw, indicated by the arrow in Figure
6.13., from the topside of the starter gear housing
using a #2 phillips screwdriver.
18. Separate the starter gear housing. See Figure 6.14.
19. Remove the pinion gear.
20. Remove the bendix gear assembly.
21. Remove the bushing from the starter gear housing.
See Figure 6.15.
NOTE: A blind hole bearing puller with a 12mm
arbor or a screw extractor can be used.
Figure 6.13
Figure 6.14
Bendix gear
pinion gear
Figure 6.15
Screw extractor
