P90 Series Vertical Shaft Engines
64

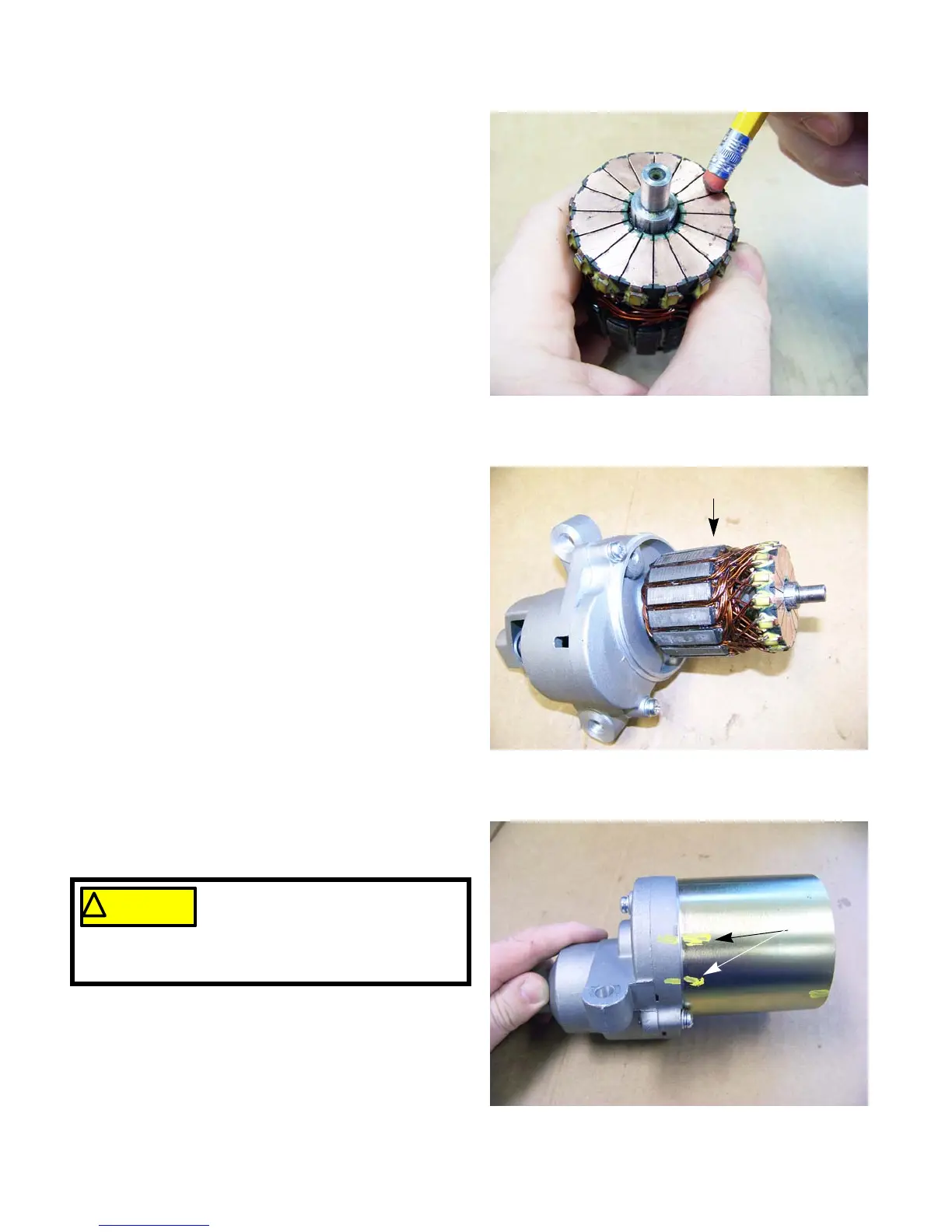

7. Clean the carbon from the commutator.
NOTE: A pencil eraser is very effective in cleaning
commutators.
See Figure 6.24.
8. Insert the splined end of the rotor into the starter
gear housing.
See Figure 6.25.
9. Slide the stator housing over the rotor assembly.
10. Rotate the stator housing until the alignment marks
(made before disassembly) line up.
See Figure 6.26.
Figure 6.24
Figure 6.25
Rotor assembly
Figure 6.26
Alignment marks
! CAUTION! CAUTION
Keep fingers clear while sliding the
stator housing over the rotor. The
magnets inside the stator housing
will draw the stator up against the starter gear
housing with great force.
