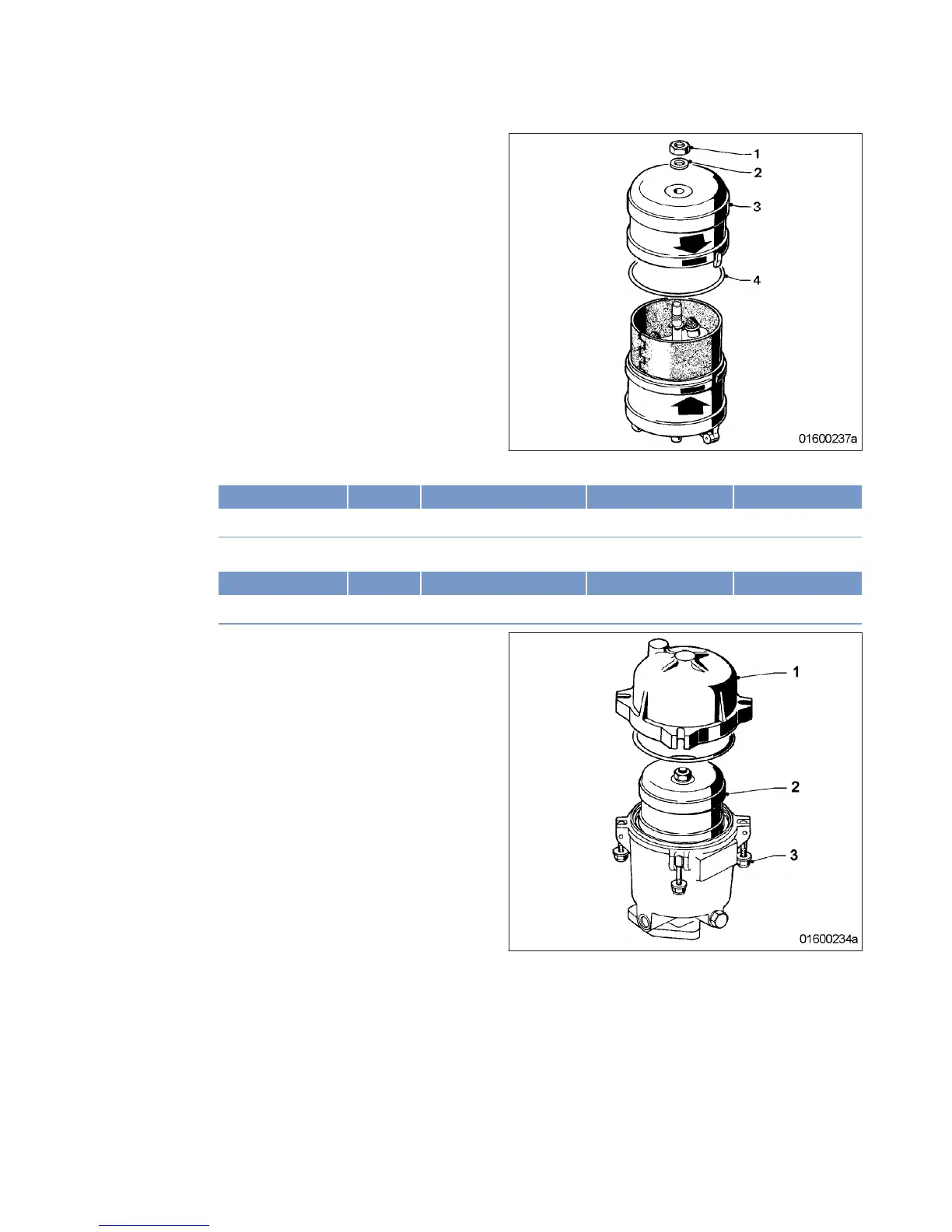

9. Fit new sealing ring (4).
10. Set on rotor cap (3), observe marks.
11. Fit washer (2).
12. Hold rotor (new design) with strap wrench and tighten nut (1) with torque wrench to the specified torque.
Name Size Type Lubricant Value/Standard
Nut M18 x 1.5 Tightening torque 10 Nm
13. Hold rotor (old design) with strap wrench and tighten nut (1) with torque wrench to the specified torque.
Name Size Type Lubricant Value/Standard
Nut M16 x 1.5 Tightening torque 40 Nm to 50 Nm
14. Insert complete rotor (2) into the housing
and check for ease-of-movement.
15. Set housing cover (1) with new sealing ring
onto lower section, observe marks.
16. Tighten nuts (3) crosswise and evenly.
MW15550/06E 2012-02 | Task Description | 215
TIM-ID: 0000006418 - 002
