SAFETY CODES BY TIPPING THE CONTAINER

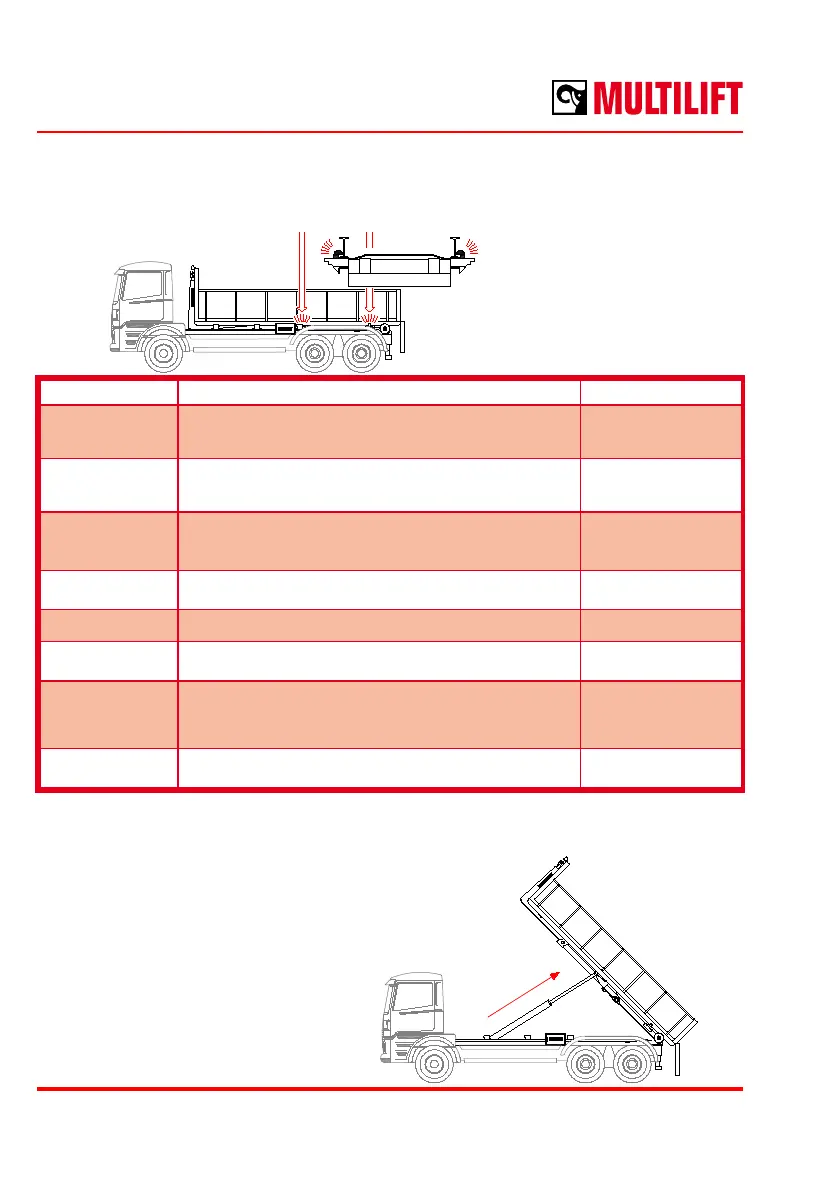

Possible safety codes in the display when starting the tipping function
Possible safety codes in the
display when tippin up
SAFETY CODE DESCRIPTION NOTE
C007, d012
MIDDLE FRAME DOWN SENSOR (119) IS ACTIVE, BUT REAR
FRAME DOWN SENSOR (318) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
TIPPING IS WORKABLE.
C008
MIDDLE FRAME NEARLY DOWN SENSOR (120) IS NOT ACTIVE AND
REAR FRAME DOWN SENSOR (318) IS ACTIVE.
CHECK THE SENSOR 120 AND THE CABLE.
TIPPING IS WORKABLE.
C009, d000,
d004
BODY LOCKS OPEN SENSOR (316) AND BODY LOCKS CLOSED
SENSOR (317) ARE BOTH ACTIVE.
CHECK WHY SENSOR 316 IS ACTIVE.
TIPPING IS WORKABLE.
d003
TIPPING LOCK CLOSED SENSOR (319) HAS LOST SIGNAL.
CHECK THAT TIPPING LOCK IS CLOSED AND SENSOR ACTIVE.
TIPPING IS PREVENTED.
d004
BODY LOCKS CLOSED SENSOR (317) IS NOT ACTIVE. TIPPING IS PREVENTED.
d015
HOOK ARM BACK SENSOR (320) IS ACTIVE.
CHECK THE SENSOR AND CABLE.
TIPPING IS PREVENTED.
d021
URB OUT SENSOR (323) IS ACTIVE OR
URB IN SENSOR (322) AND URB OUT SENSOR (323) ARE BOTH
ACTIVE.
TIPPING IS PREVENTED.
TIPPING IS WORKABLE.
d022
URB IN SENSOR (322) AND URB OUT SENSOR (323) ARE NOT
ACTIVE.
TIPPING IS WORKABLE.
