IMC08 Banknote Counter & Sorter User Manual
Version 1.03

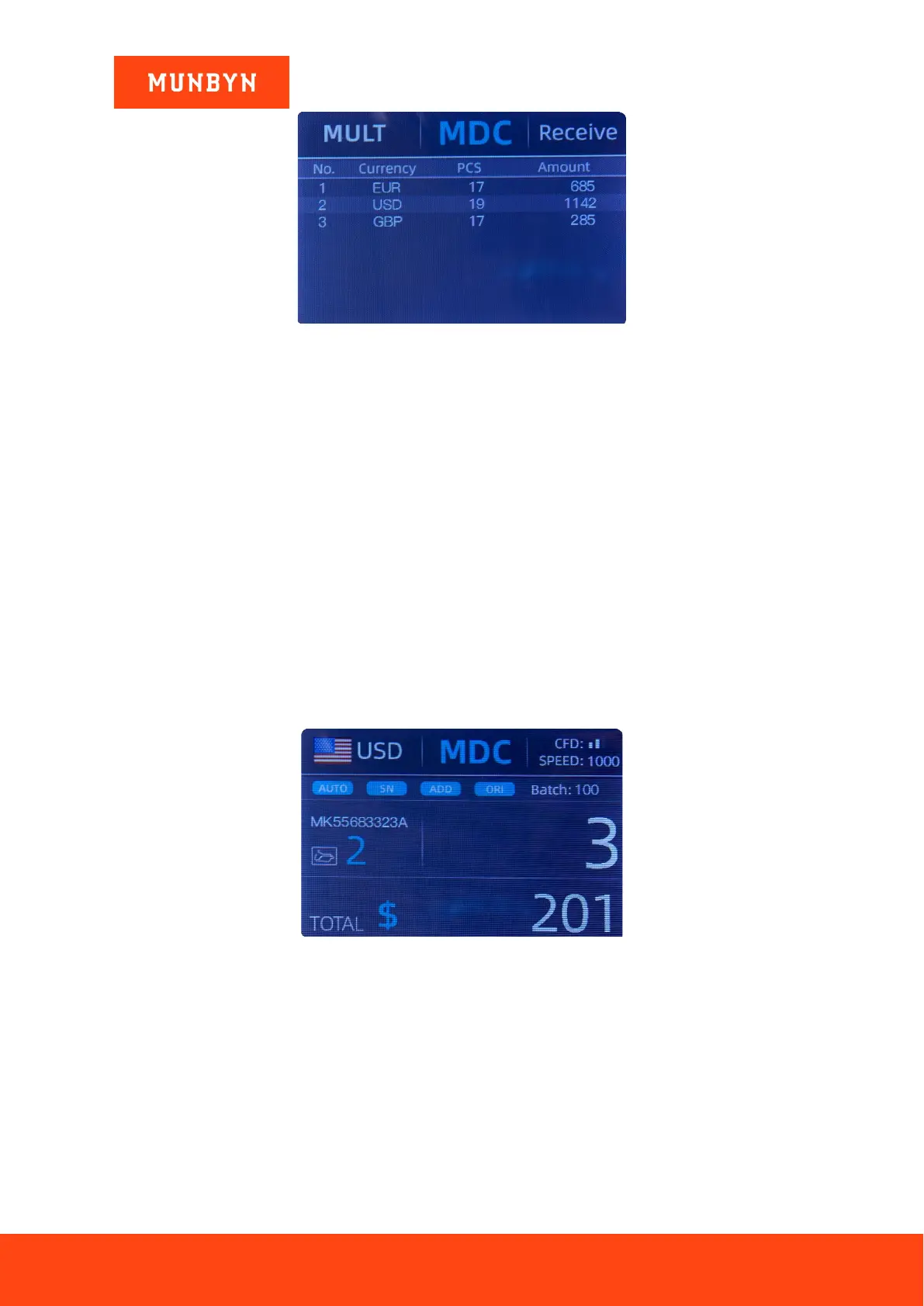

Figure 5-11 Multi-currency MDC Counting Result
5.3.3. Non-Volatile Memory for Currency Mode
The currency mode setting is non-volatile. For example, if you set multi-currency counting mode before you
power down the IMC08, next time the IMC08 will be in multi-currency counting mode after power on. It is
a convenience that you will not need to reselect the currency every time you power on the IMC08.
5.4. Counting Mode Selection
After the machine is turned on, the flag & currency graphic appears in the upper left corner, indicating that
the machine is in the current currency counting mode.
The default mode is MDC mode. By pressing the MODE key of the control panel, three counting modes can
be toggled in an MDC-CNT-SDC-SDCV sequence.
5.4.1. MDC Mode
As shown in the following figure, the IMC08 is in MDC mode. In this mode, the IMC08 will count the
banknotes of all denominations of the selected currency, and the total amount and number of banknotes are
displayed on the screen. Any suspicious notes or other currency notes will be sent to the reject pocket. In
this mode, the IMC08 has 2 counting speed (800/1000 pcs/min) options.
Figure 5-12 MDC Mode
5.4.2. SDC Mode
As shown in the following figure, the IMC08 is in SDC mode. This mode allows the user to count and sort
the banknotes by one denomination which is automatically determined by the first note scanned in a stack.
This can be useful to be sure that there is no other denomination banknote in a large strap of one
denomination. The first banknote in the hopper determines the counting and sorting denomination. Any time
a note passes through the IMC08 and does not conform to the denomination determined by the first note, the
IMC08 will reject this not into the reject pocket. The total amount and number of banknotes will be displayed
on the screen. In this mode, the IMC08 has 2 counting speed (800/1000/min) options.
