4.7Installationexamples—coldstorageroom(freezer)
Muntersrecommendsthefollowinginstallations.Ifindoubt,contactMuntersforadvice.
Notetheservicespacerequirementsinsection8.1,Dimensionsandservicespace.
A
B

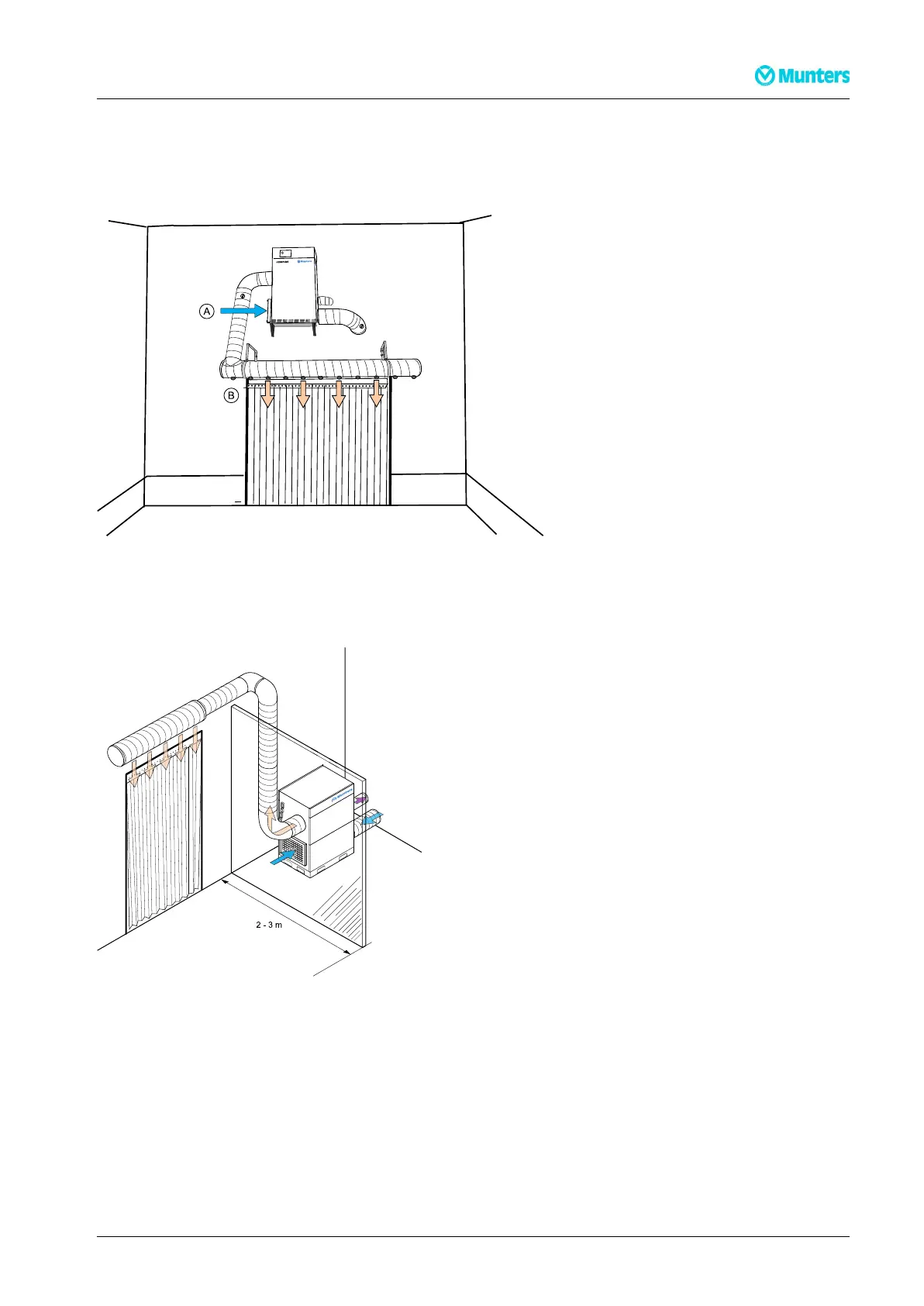

Figure4.2Positionabovedoor/airlock
A.ProcessairinletB.Dryairoutlet
2 - 3 m
Figure4.3Positionbehindscreen.
190TGB-1037-G1307Installation11
