Using the Web Browser

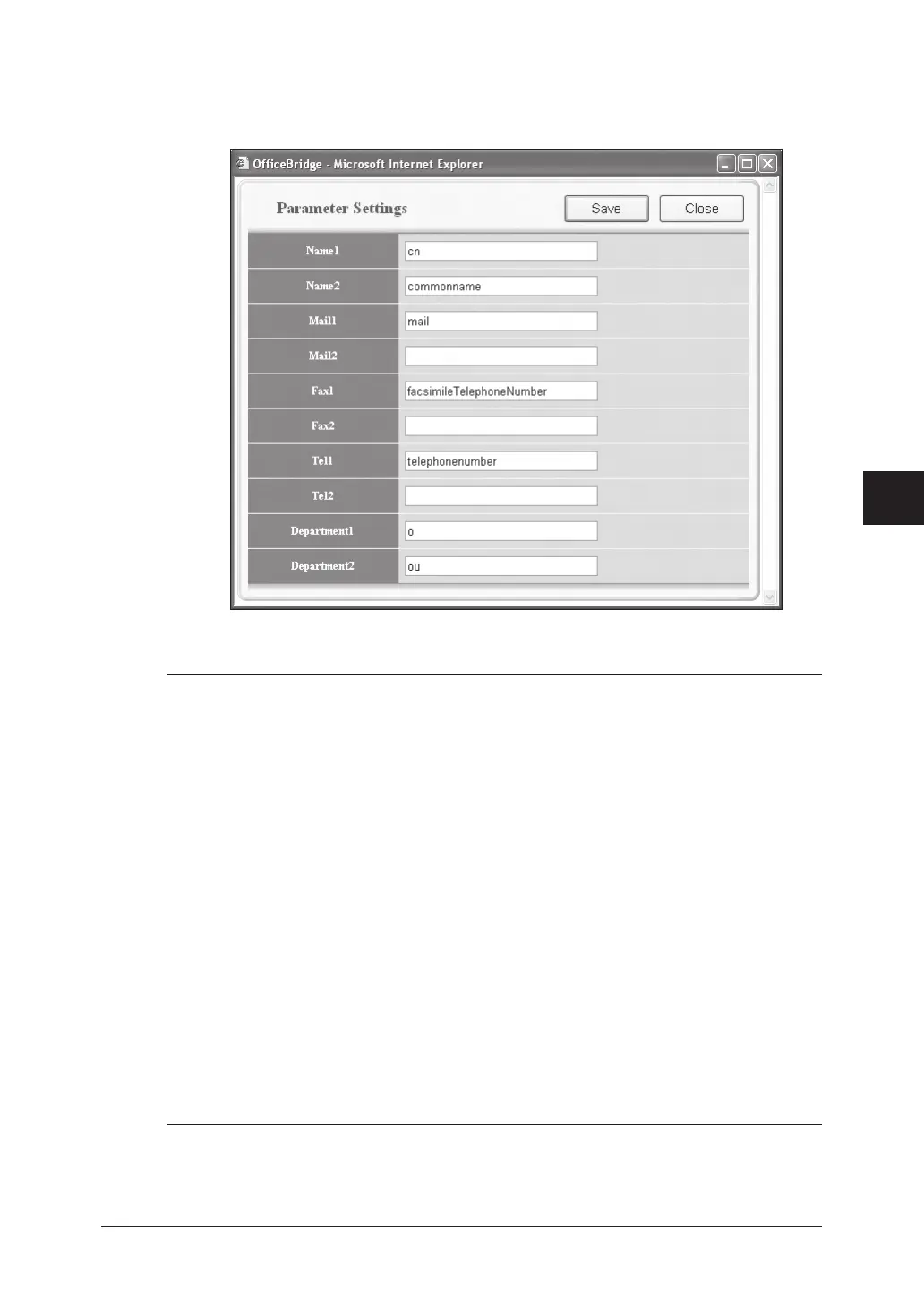

Parameter Settings
(1) Click [Parameter Settings].
The “Parameter Settings” dialog appears.
(2) Enter an attribute and click [Save].
NOTE:
You can register up to two attributes for each search object.
When two attributes have been registered, only the first attribute is used as
a searching filter. The machine will retrieve all records based on the param
-
eters and attributes you set.
For example, if the LDAP parameters are set as follows when you perform a
search:
Name1 : cn
Name2 : commonname
Mail1 : mail
Mail2 :
Fax1 : facsimiletelephonenumber
Fax2 :
Tel1 : telephonenumber
Tel2 :
Dept.1 : o
Dept.2 : ou
The machine will first request the LDAP server to search the record that
includes “cn=Muratec”. Then, the machine retrieves only the parameters that
have been registered – cn, commonname, mail, facsimiletelephonenumbner,
telephonenumber, o, ou – from the directory.
To Next Page
