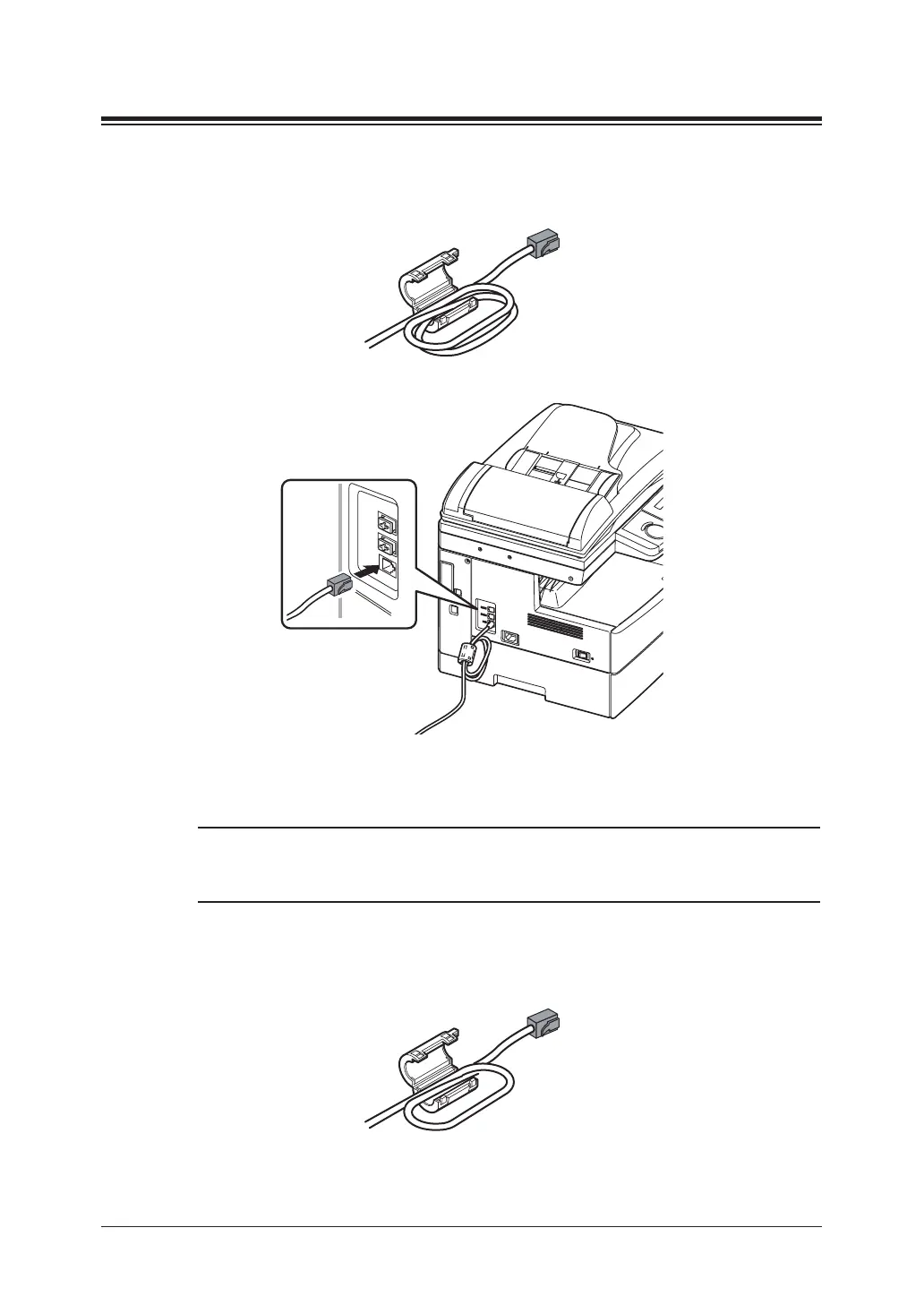

Step 6 : Connect the cables
Connect the telephone line cable
1
Loop the telephone line cable and attach the ferrite core as shown. The
telephone line cable loop should be near the connector of the cable.
2
Plug the telephone line cable into the LINE jack.
LI
N
E
P
H
O
N
E
1
P
H
O
N
E
2
3
Plug the other end of the telephone line cable to the telephone wall jack.
Connect the LAN cable
NOTE:
• A LAN cable is not supplied with the machine.
• If you are not installing the machine on a network, please skip to
“Connect the power cord”.
1
Prepare a 10BASE-T or 100BASE-Tx LAN cable (Category 5).
2
Loop the LAN cable and attach the ferrite core as shown. The LAN cable
loop should be near the connector of the cable.
