3.1 Hardware revision
Front printing The hardware revision is printed on each Cube20S module.
Since a Cube20S module consists of a terminal and an electronic module,
the respective hardware revision is printed on both modules.
Important for the hardware revision of a Cube20S module is the hardware
revision of the electronic module, which can be found below the labeling
strip of the respective electronic module.
On modules without labeling strip, the hardware revision is printed on the
front side.
The example below shows the hardware revision 1. The number 1 is identified
with an "X".

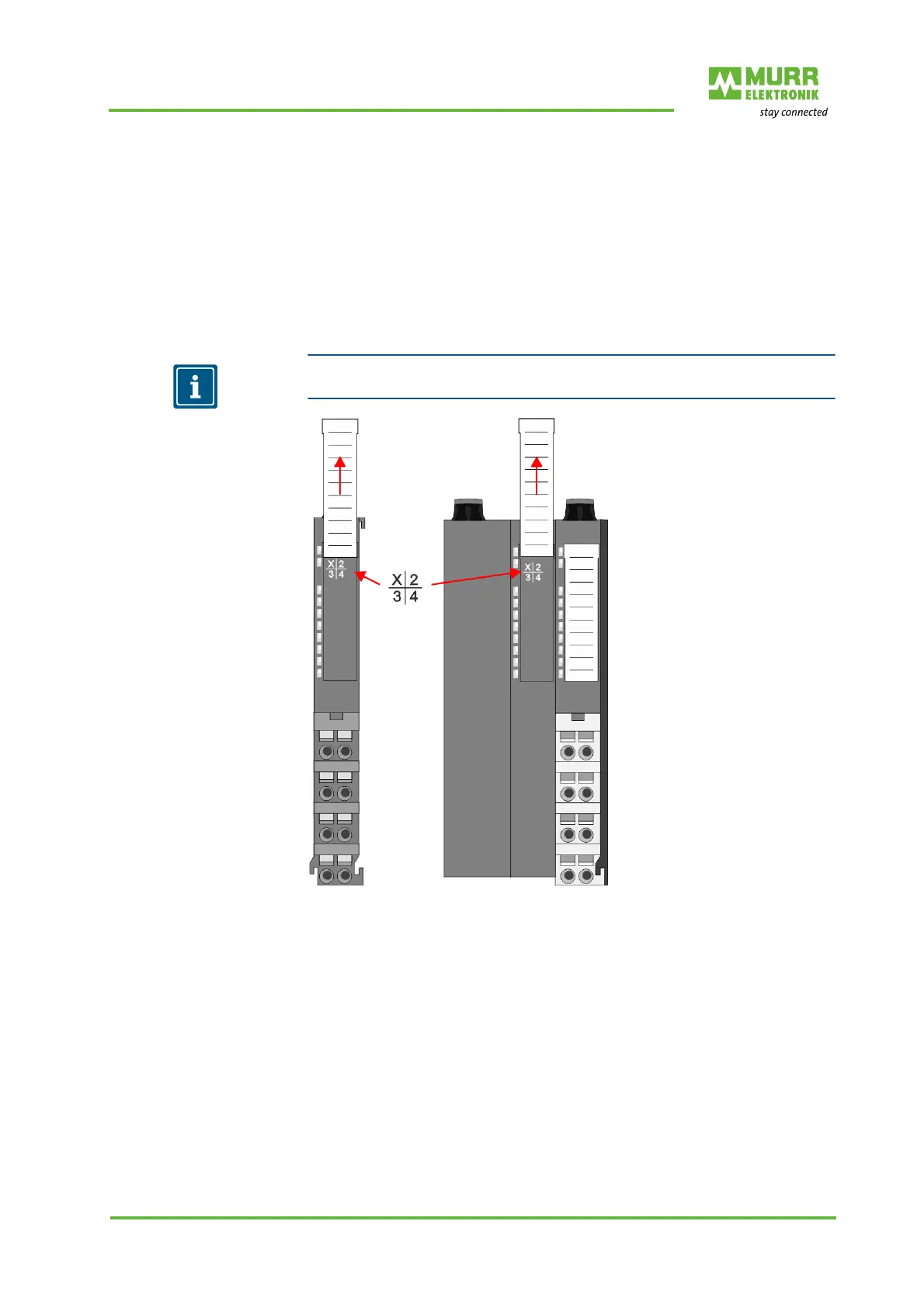

Fig. 3-2: Front printing
Web server The hardware version "HW revision" for bus nodes with web server can be
output via the integrated web server.
