Murr Elektronik CUBE20S User Manual

Mounting
User manual 57120_hdb_en_12 24 / 70
5.4 Mounting of the bus node
 To mount the system, start on the left with the bus node.
1 | Flap the two locking levers of the bus node upwards (Figure 1).
2 | Plug the bus node in the DIN rail (Figure 1).
3 | Flap the two locking levers of the bus node downwards (Figure 2).
4 | To remove the right bus cover, pull it out towards the front (Figure 2).
5 | Store the bus cover to use it as termination of the system.

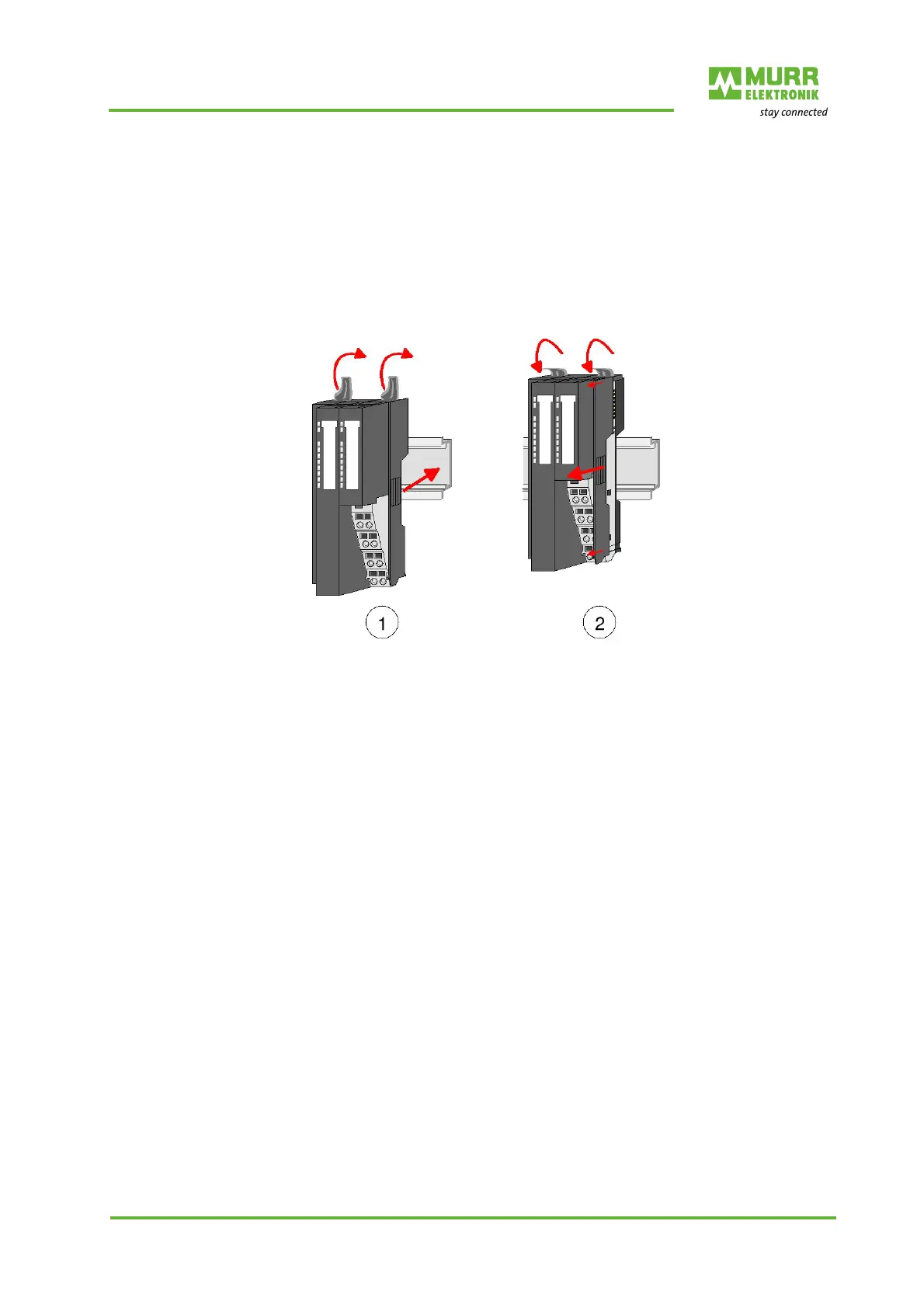

Fig. 5-6: Installing the bus node
