Installation
User manual 57120_hdb_en_12 41 / 70

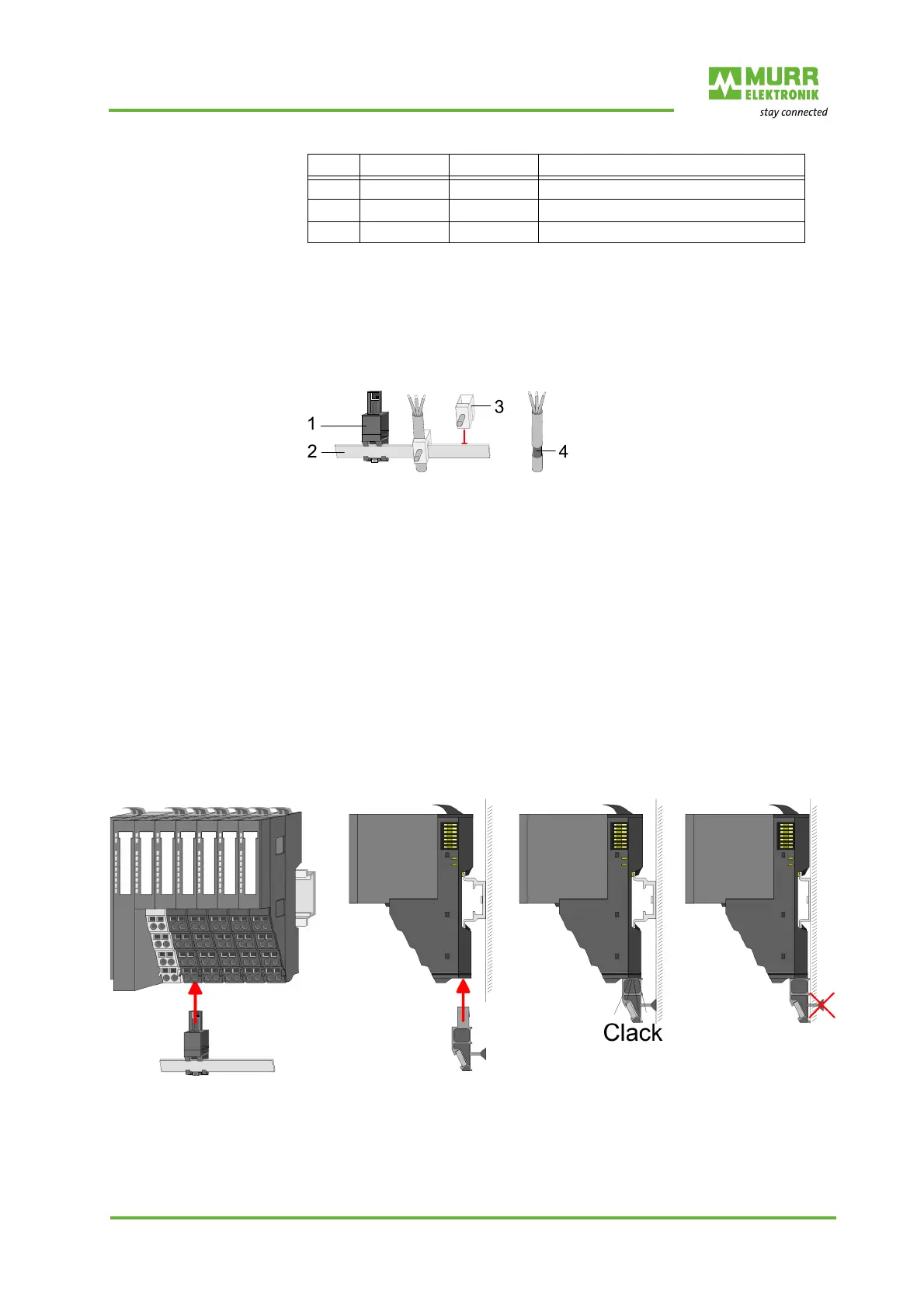

7.6 Fixing the shield
Shield bus carrier Shield bus carriers are required for installing a shield (see section 11.1 "Ac-
cessories"). The shield bus carrier supports the shield bus for connecting ca-
ble shields.
Fixing the shield
Fig. 7-9: Shield
1 Shield bus carrier
2 Shield bus (10 mm x 3 mm)
3 Shield terminal block
4 Shielding
Installing the shield bus
 Each Cube20S module is provided on the bottom side with an opening for
the shield bus carrier. The bus node has two openings.
 Insert the shield bus carriers until they engage in the module.
 If the mounting rail is flat, break the spacer off the shield bus carrier for ad-
justment.
 Insert the shield bus into the shield bus carrier.
Fig. 7-10: Fixing the shield
6 24 V DC Input 24 V DC for power supply
7 0 V Input GND for power supply
8 Sys 0 V Input GND for electronics supply
Pos. Function Type Description
