Murr Elektronik CUBE20S User Manual

Terminal modules
User manual 57120_hdb_en_12 48 / 70

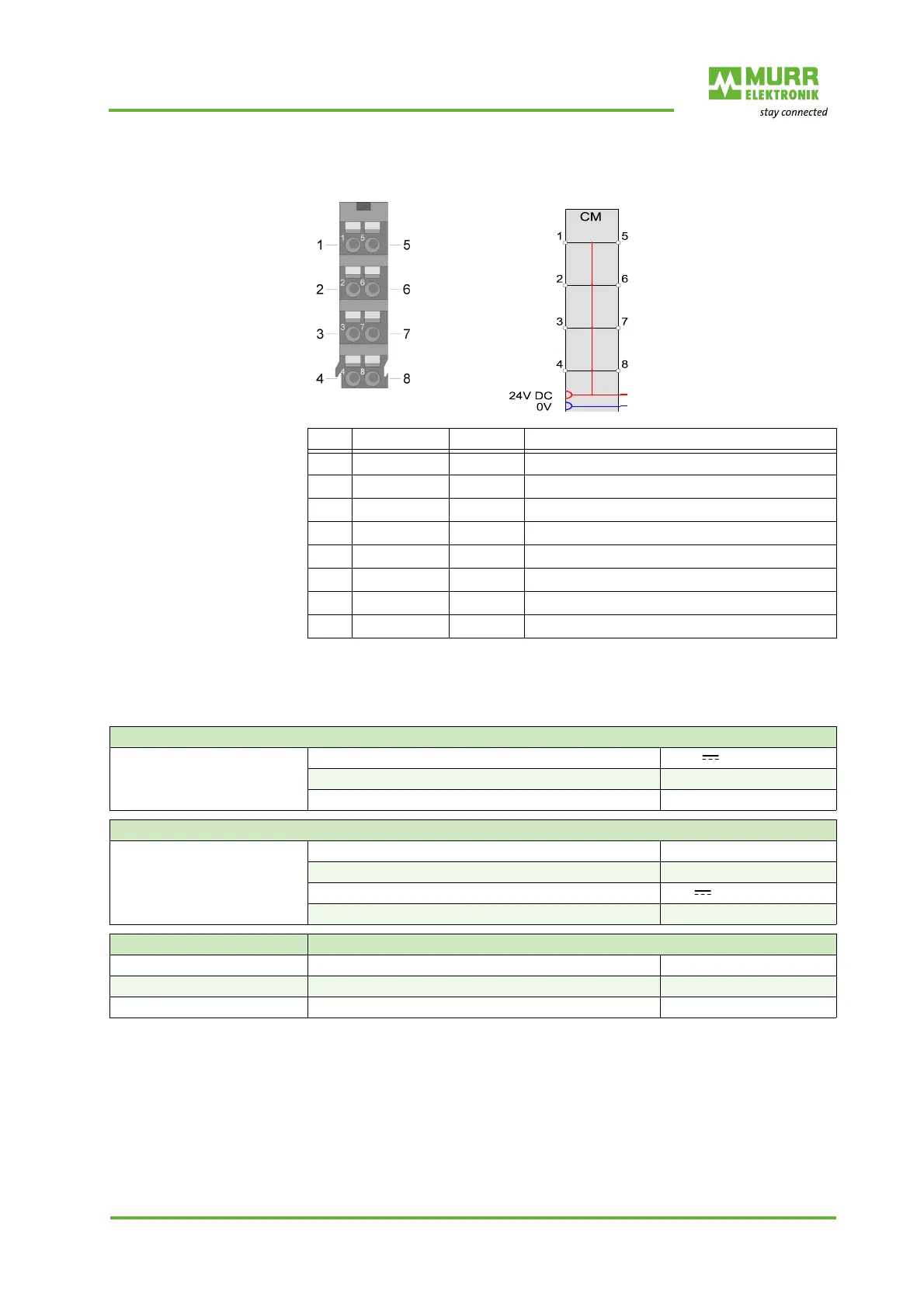

Connecting terminal Connect the wires with a cross-section of 0.08 mm
2
to 1.5 mm
2
.
Tab. 9-1: Assignment of connecting terminals
9.1.3 Technical Data
Pos. Function Type Description
1 24 V DC Output 24 V DC power supply
2 24 V DC Output 24 V DC power supply
3 24 V DC Output 24 V DC power supply
4 24 V DC Output 24 V DC power supply
5 24 V DC Output 24 V DC power supply
6 24 V DC Output 24 V DC power supply
7 24 V DC Output 24 V DC power supply
8 24 V DC Output 24 V DC power supply
Terminal parameters
Terminal voltage 30 V
Terminal current 10 A
Total current per module 10 A
Potential group
Number of terminals 2x4
Terminal color Gray
Potential binding (field voltage) 24 V
Potential group current 10 A
Mechanical data Housing
Material PPE / PPE GF10
Dimensions (W x H x D) 12.9 x 109 x 76.5 mm
Net weight 50 g
