Murr Elektronik CUBE20S User Manual

Power modules
User manual 57120_hdb_en_12 65 / 70
10.3.5 Technical Data

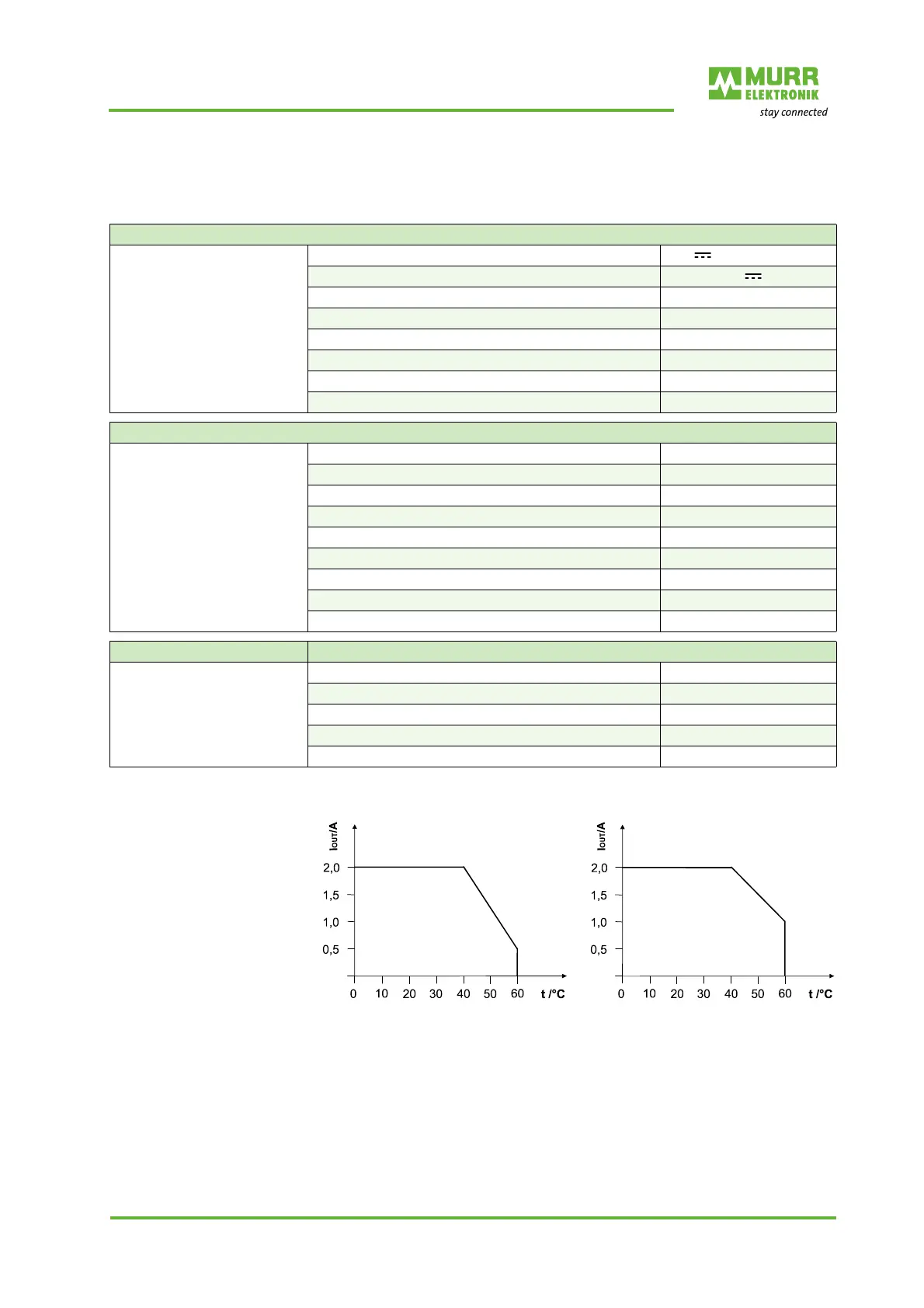

Derating diagrams of
electronics supply
Power supply
Input voltage (nominal value) 24 V
Input voltage (admissible range) 20.4...28.8 V
Output voltage (nominal value) 24 V
Output current (nominal value) 4 A
Reverse-polarity protection yes
Overvoltage protection 36 V
Efficiency rating 89 %
Power dissipation 1.4 W
Status, alarm, diagnostics
Status indication Yes
Alarms No
Process interrupt No
Diagnostic interrupt No
Diagnostic function No
Diagnostic information can be read out None
Display of the supply voltage Green LED
Collective error indication Red LED
Channel error display None
Mechanical data Housing
Material PPE / PPE GF10
Dimensions (W x H x D) 12.9 x 109 x 76.5 mm
Net weight 60 g
Weight incl. accessories 60 g
Gross weight 75 g
Convection Air circulation 0.5 m/s
