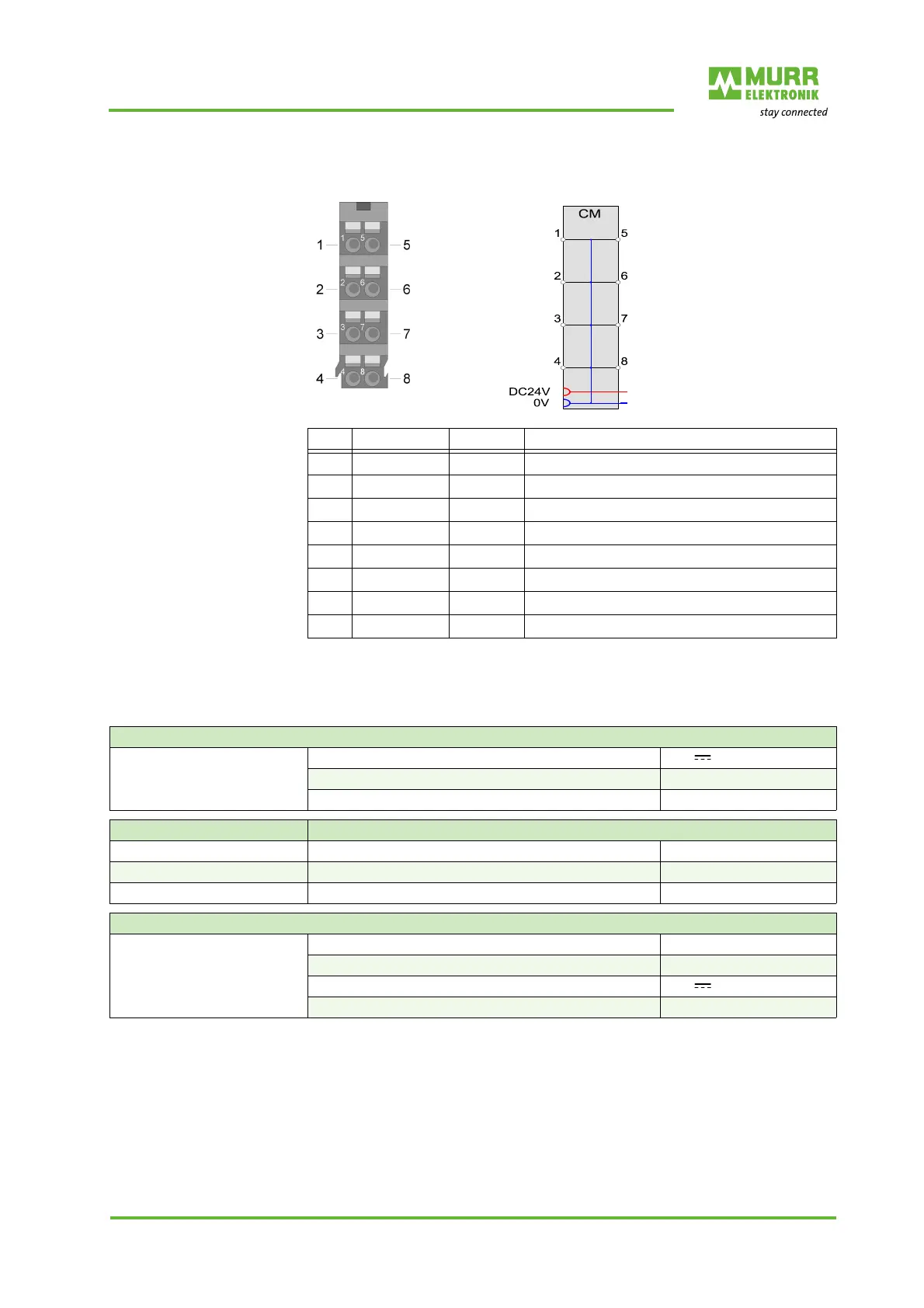

Murr Elektronik CUBE20S User Manual

Terminal modules
User manual 57120_hdb_en_12 50 / 70
Connecting terminal Connect the wires with a cross-section of 0.08 mm
2
to 1.5 mm
2
.
Tab. 9-2: Assignment of connecting terminals
9.2.3 Technical Data
Pos. Function Type Description
1 0 V DC Output Ground GND power supply
2 0 V DC Output Ground GND power supply
3 0 V DC Output Ground GND power supply
4 0 V DC Output Ground GND power supply
5 0 V DC Output Ground GND power supply
6 0 V DC Output Ground GND power supply
7 0 V DC Output Ground GND power supply
8 0 V DC Output Ground GND power supply
Terminal parameters
Terminal voltage 0 V
Terminal current 10 A
Total current per module 10 A
Mechanical data Housing
Material PPE / PPE GF10
Dimensions (W x H x D) 12.9 x 109 x 76.5 mm
Net weight 50 g
Potential group
Number of terminals 2x4
Terminal color Gray
Potential binding (field voltage) 24 V
Potential group current 10 A
