Mounting

User manual 57120_hdb_en_12 20 / 70

5 Mounting

5.1 Dimensions

Dimensions of the bus

node

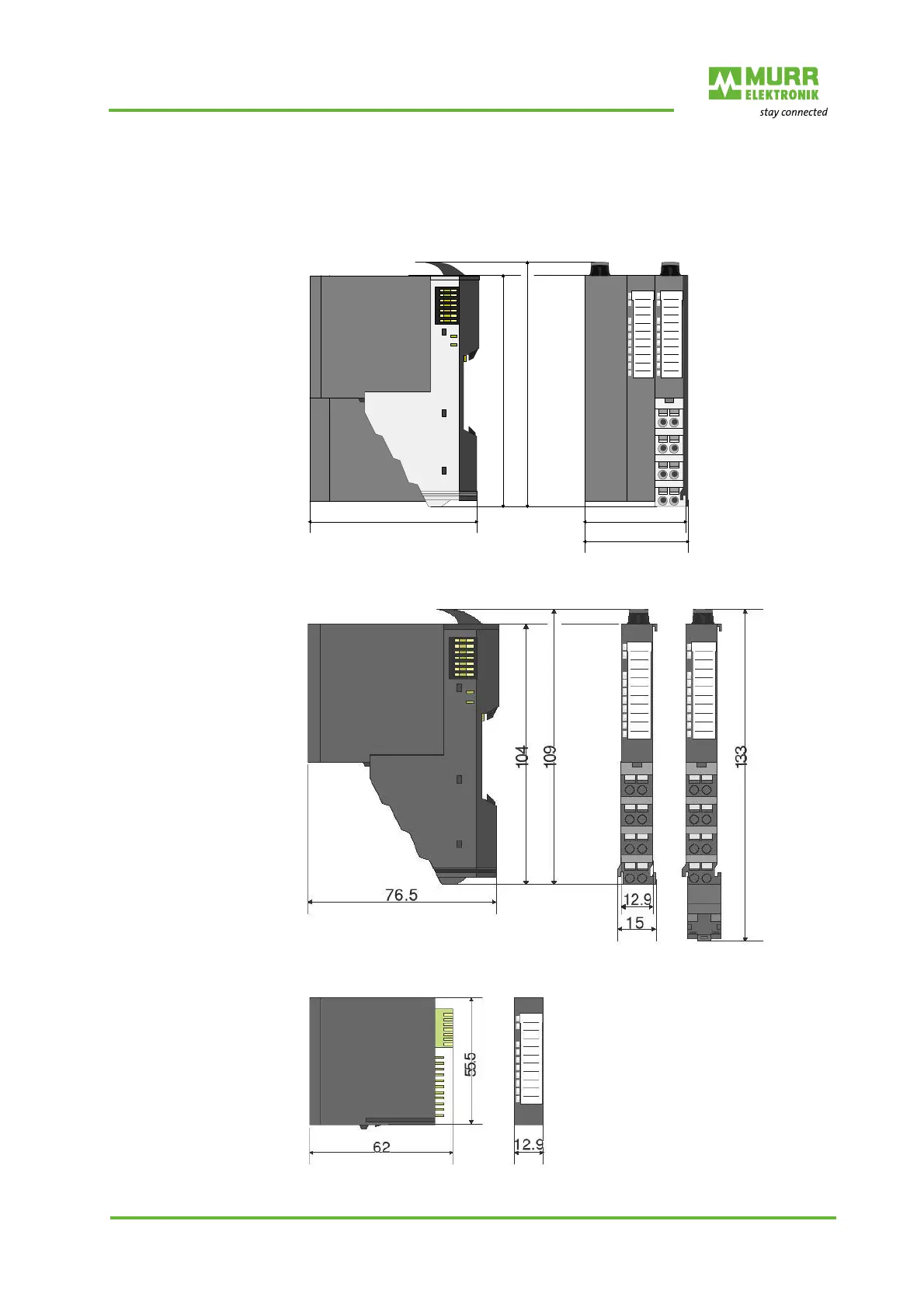

Fig. 5-1: Dimensions of the bus node in mm

Dimensions Expansion

module

Fig. 5-2: Dimensions of the expansion module in mm

Dimensions of the elec-

tronic module

Fig. 5-3: Dimensions of the electronic module in mm

76.5

46,2
