Murr Elektronik CUBE20S - Structure

Power modules
User manual 57120_hdb_en_12 54 / 70

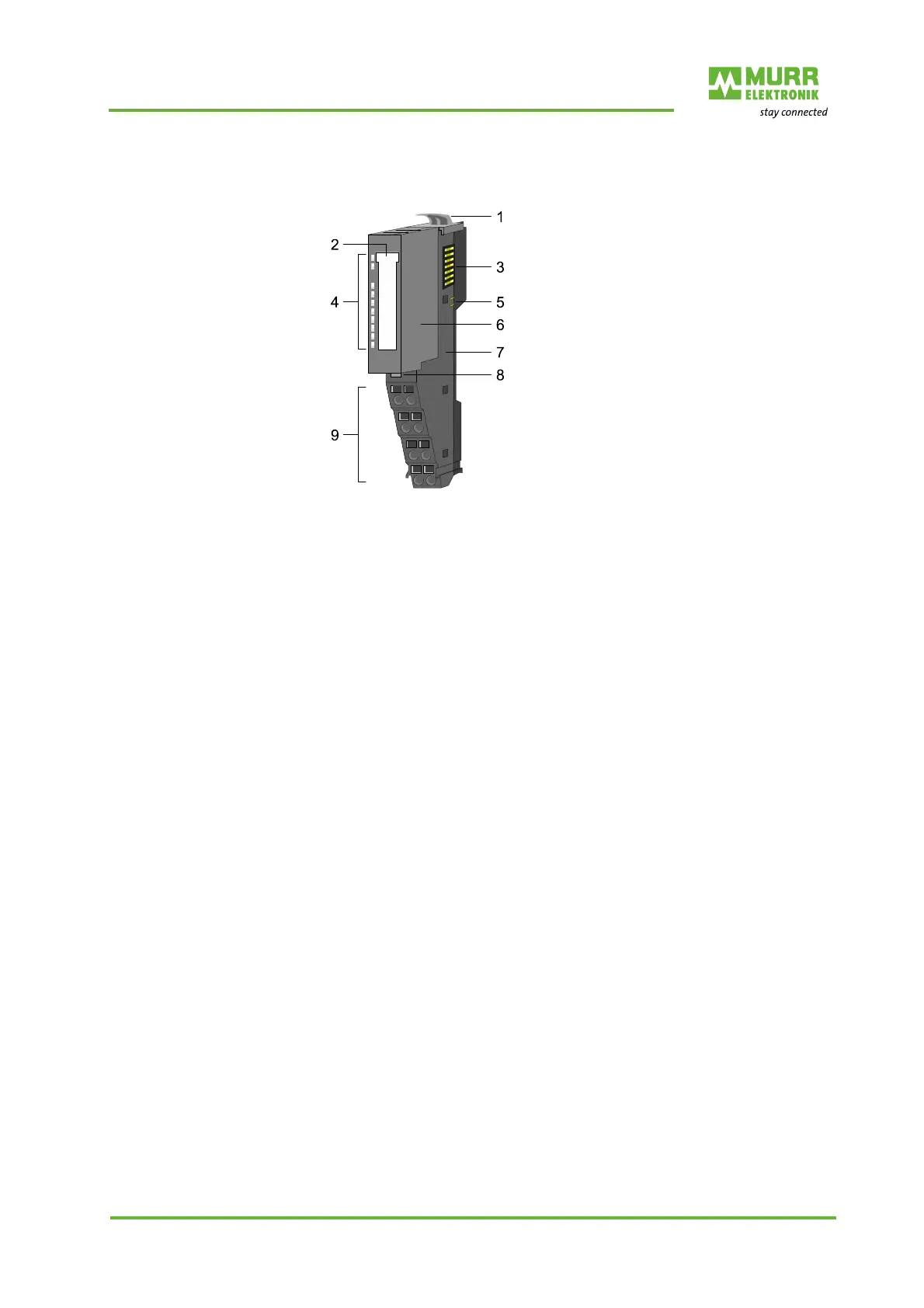

10.2.2 Structure
1 Locking lever on the terminal
module
2 Labeling strips
3 Backplane bus
4 LED status indication
5 24 V DC power supply
6 Electronic module
7 Terminal module
8 Locking lever on the electronic
module
9 Terminals
