Power modules
User manual 57120_hdb_en_12 56 / 70
10.2.3 Supply
WARNING!
The power supply is not protected internally.
It can get destroyed by too high currents.
 Protect the power supply externally using a fuse or line circuit breaker!
External fuse To protect the power supply, Murrelektronik provides a number of circuit break-
ers. They can be found under the product name MICO on the internet
www.murrelektronik.com.
10.2.4 Using

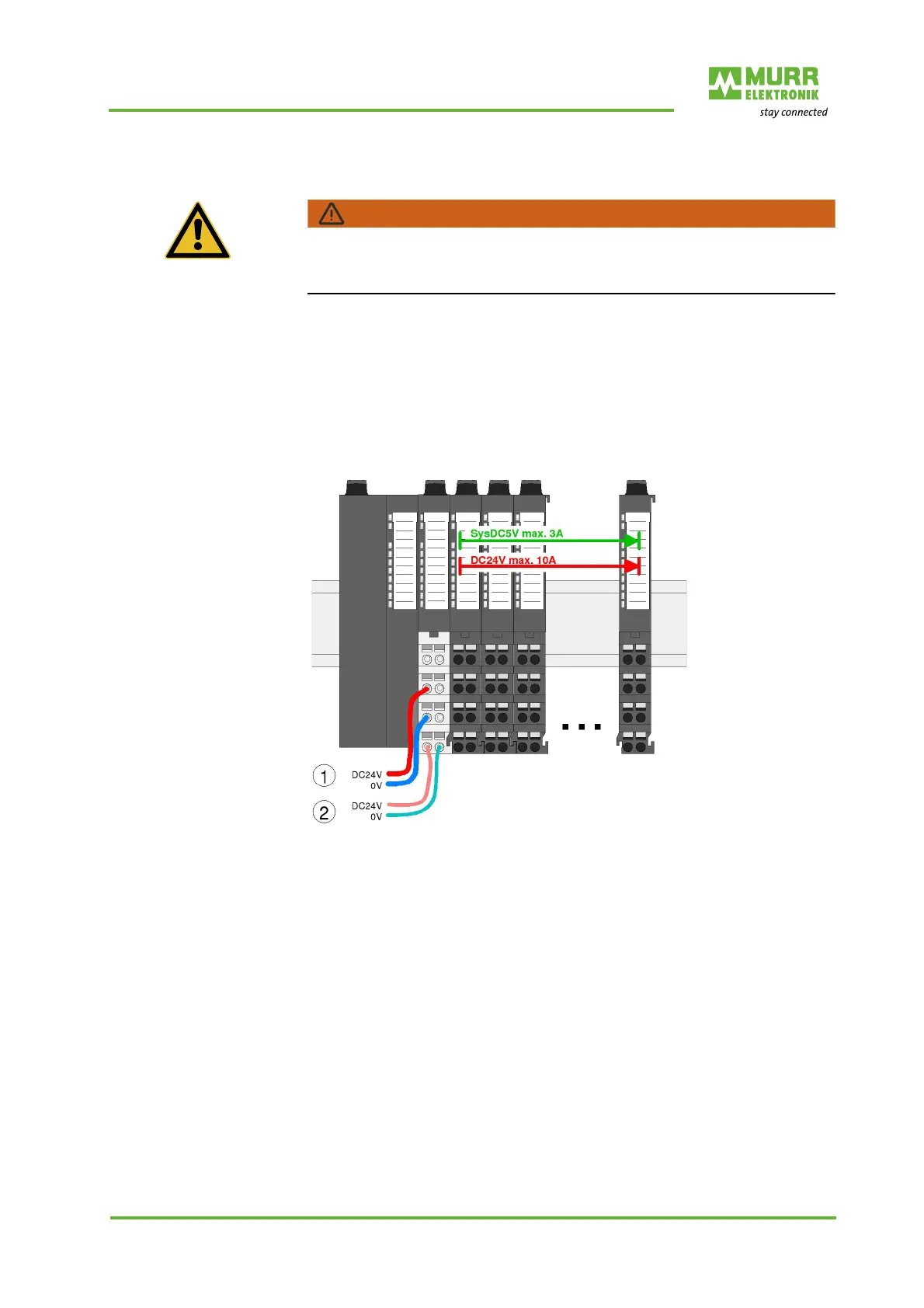

Use The standard wiring of the power supply in combination with the bus node is
given in Fig. 10-1: .
Standard wiring
Fig. 10-1: Standard wiring
1 24 V DC for power supply of I/O level (max. 10 A)
2 24 V DC for electronics supply, bus node and I/O level
