Murr Elektronik CUBE20S User Manual

Power modules
User manual 57120_hdb_en_12 57 / 70
Standard wiring of the
power modules

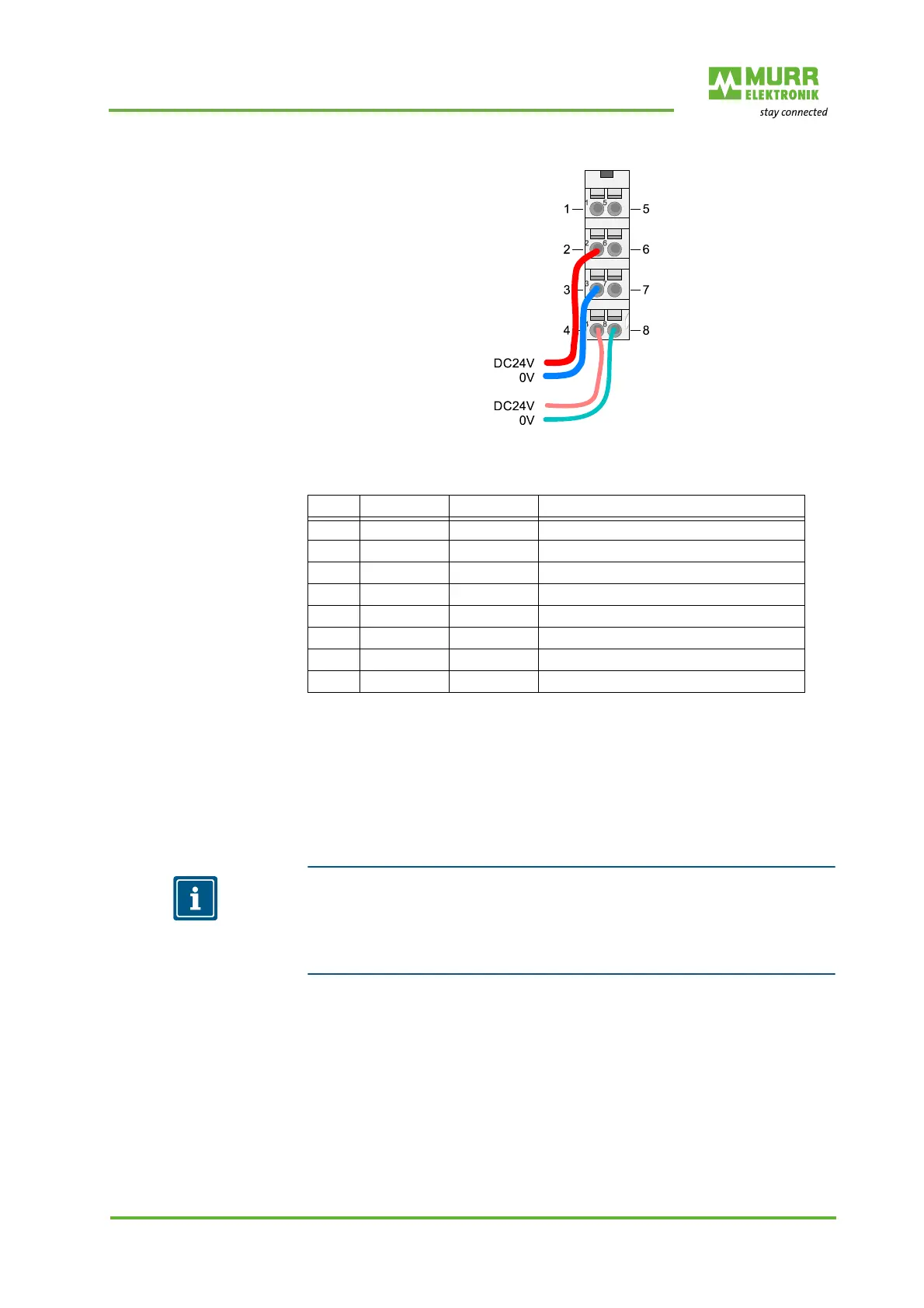

Fig. 10-2: Standard wiring
For wires with a cross-section of 0.08 mm
2
to 1.5 mm
2
.
Use the power module art. no. 57130:
 If 10 A is no longer sufficient for the power supply.
 If you want to have groups of different voltages.
If the power module is installed, further modules whose power supply does not
exceed the total current of 10 A can be installed on the backplane bus.
This allows you to extend the Cube20S system to the maximum number of 64
modules.
NOTE
The current for the electronic supply must not exceed the maximum current of
3 A.
If the total current exceeds 3 A, the LEDs are no longer activated.
 In this case, use the power module, Art.-No. 57131.
Pos. Function Type Description
1 - - not used
2 24 V DC Input 24 V DC for power supply
3 0 V Input GND for power supply
4 Sys 24 V DC Input 24 V DC for electronics supply
5 - - not used
6 24 V DC Input 24 V DC for power supply
7 0 V Input GND for power supply
8 Sys 0 V Input GND for electronics supply
