Configuration/settings
User manual 55530_hdb_en_16 109 / 156
8.5 Planning the PROFINET topology
Setting the topology PROFINET offers a number of functions, diagnostic and maintenance options
based on the existing topology or utilizing knowledge of the topology.
All MVK-MPNIO devices support the topology setting and automatic topology
recognition by the Engineering Tool.
The section below describes how to set the topology for MVK-MPNIO.
Setting via connected neighboring devices is performed via Ports X1 P1 and
X1 P2 representing the physical interfaces.
In the Port interconnection tab | Partner port | a list of possible ports for the
devices available in the project is available via the Partner port menu option.

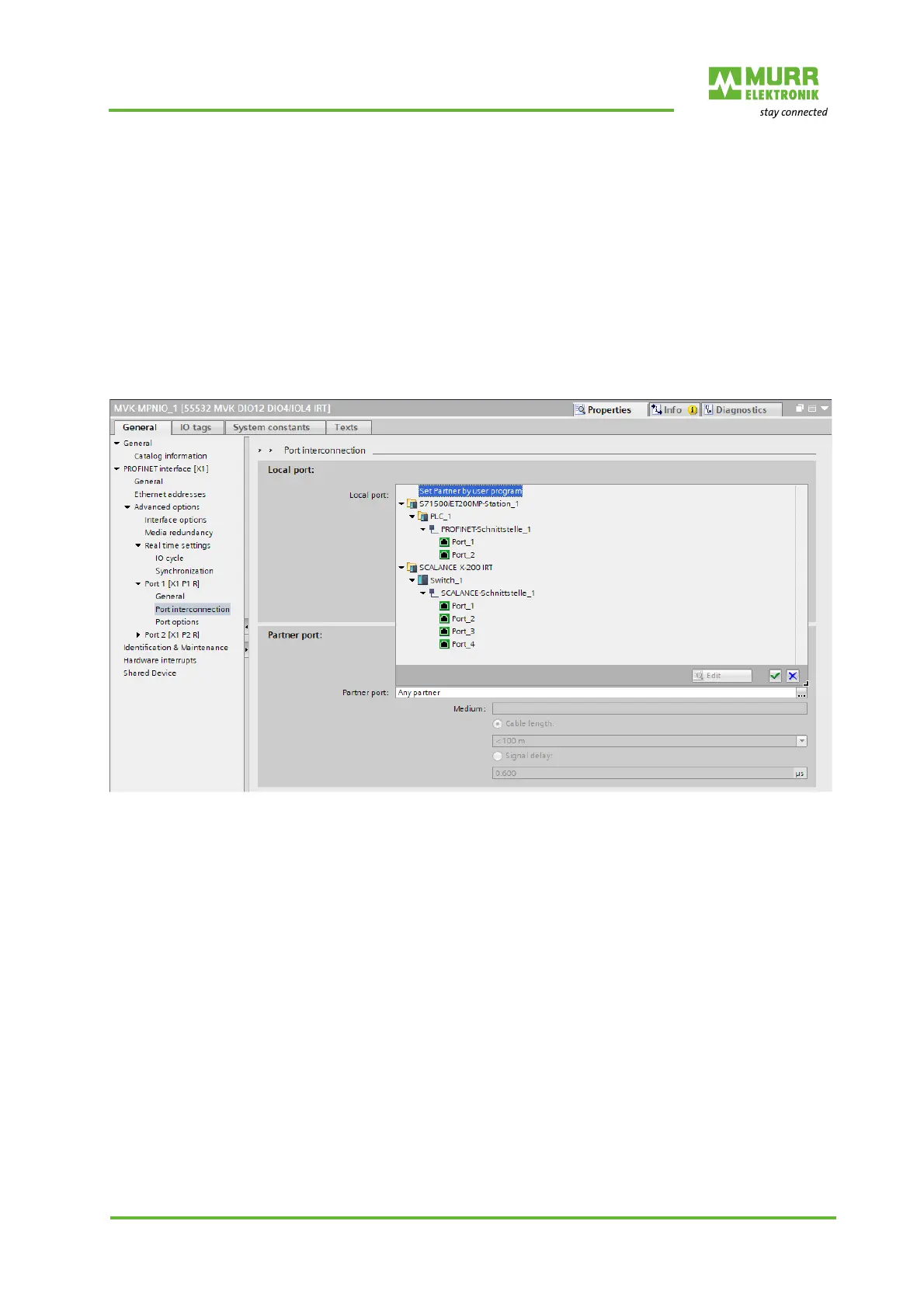

Fig. 8-36: Setting the topology
