Configuration/settings
User manual 55530_hdb_en_16 61 / 156
8.1.2 Basic configuration with submodules for diagnostic
Art.-No. 55530 In the TIA portal device view, the module is configured as
 PROFINET user with a pre-configured digital IO port for universal IO chan-
nels
 virtual parameter/diagnostic module
 virtual qualifier DI module
 virtual qualifier DO module

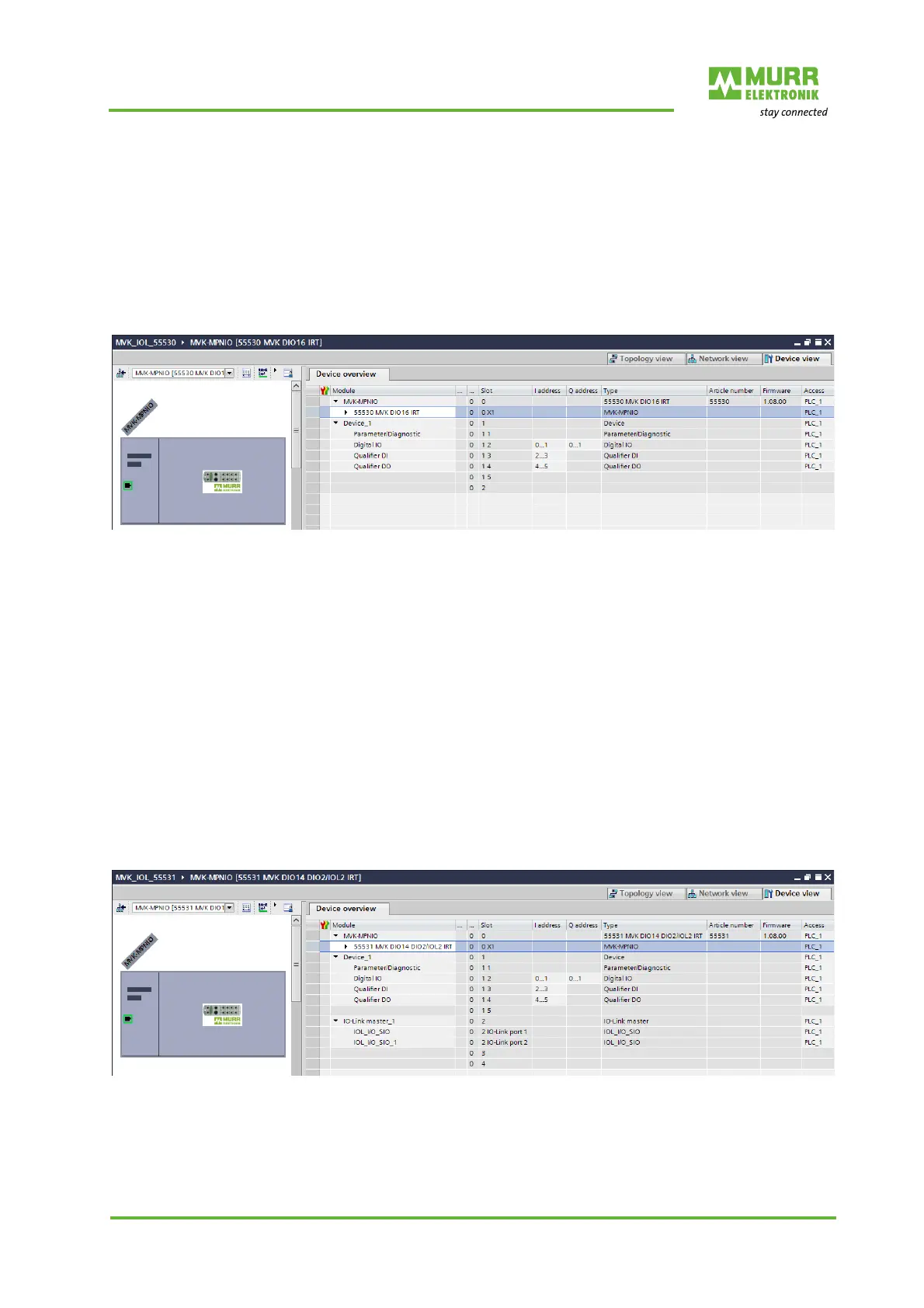

Fig. 8-5: Module basic configuration with submodules for diagnostic Art.-No. 55530
Art.-No. 55531 In the TIA portal device view, the module is configured as
 PROFINET user with a pre-configured digital IO port for universal IO chan-
nels
 virtual parameter/diagnostic module
 virtual qualifier DI module
 virtual qualifier DO module
 IO-Link master with 2 IO-Link ports (SIO)
Fig. 8-6: Module basic configuration with submodules for diagnostic Art.-No. 55531
