3.4.1 Module structure
NOTICE
Material damage caused by male connectors and female connectors that
have not been sealed!
The degree of protection IP67 is only guaranteed if all connections are sealed
with connectors, screw plugs or sealing caps.
Seal unused male connectors and female connectors.

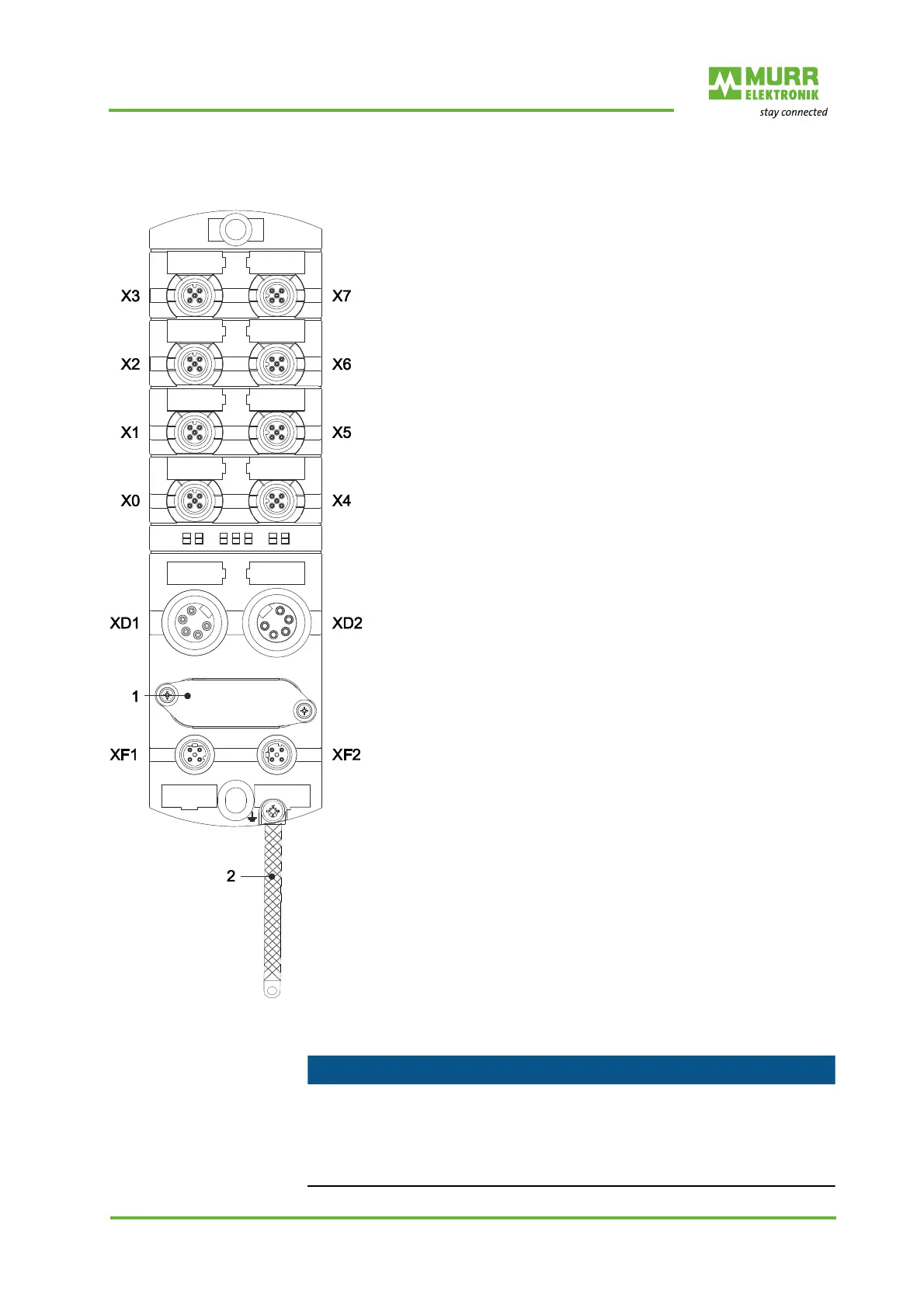

Fig. 3-8: Module structure
Art.-No. 55530
X0 ... X7 Digital inputs and digital outputs, M12
Art.-No. 55531
X0 ... X5 Digital inputs and digital outputs, M12
X6 Digital inputs and digital outputs
or IO-Link master port 1, M12
X7 Digital inputs and digital outputs
or IO-Link master port 2, M12
Art.-No. 55532
X0 ... X3 Digital inputs and digital outputs, M12
X4 Digital inputs and digital outputs
or IO-Link master port 1, M12
X5 Digital inputs and digital outputs
or IO-Link master port 2, M12
X6 Digital inputs and digital outputs
or IO-Link master port 3, M12
X7 Digital inputs and digital outputs
or IO-Link master port 4, M12
XD1 Power supply POWER IN, 7/8"
XD2 Power supply POWER OUT, 7/8"
XF1 Ethernet port 1, M12
XF2 Ethernet port 2, M12
1 DIP switch
2 Ground strap for functional ground
