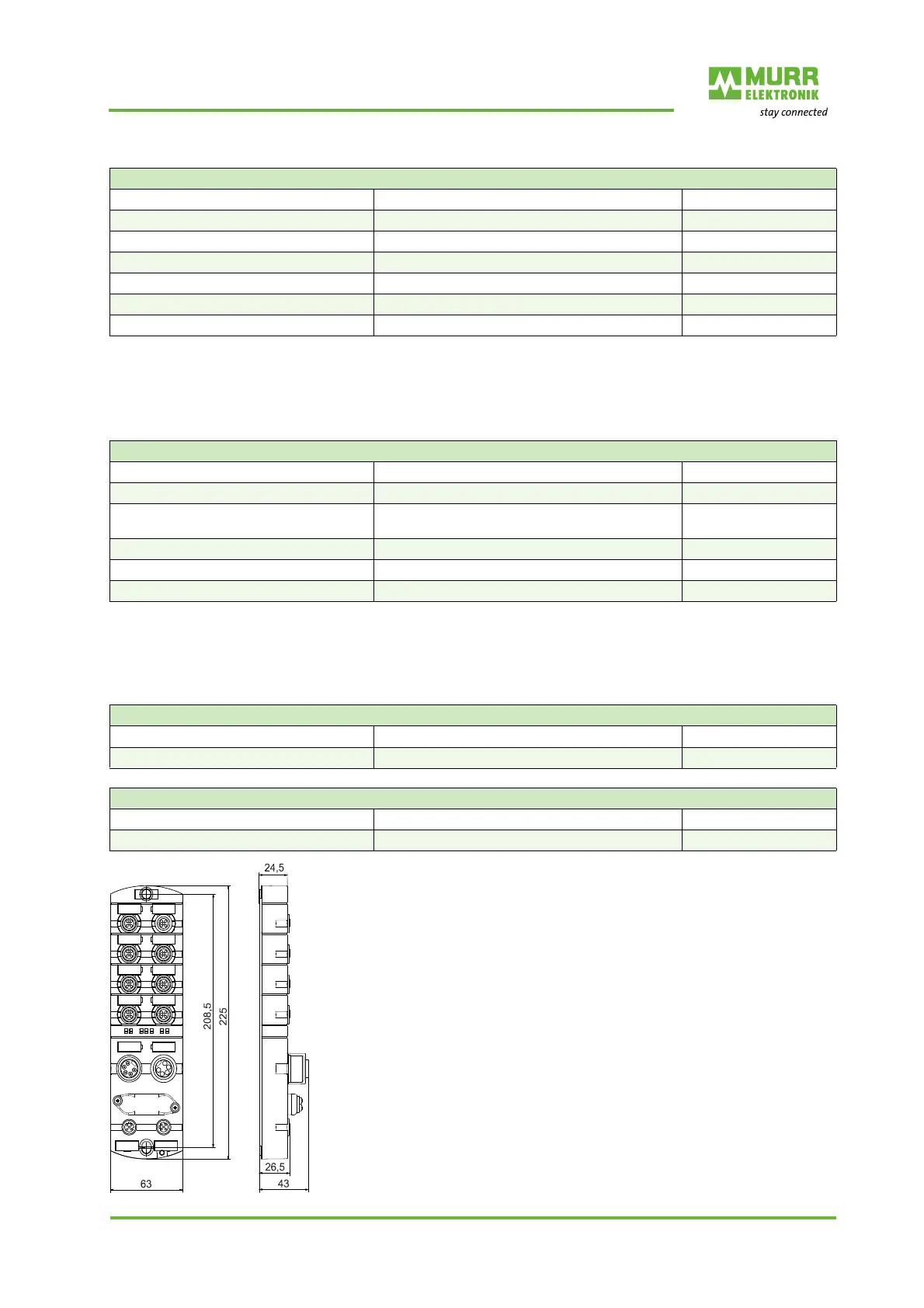

Technical Data
User manual 55530_hdb_en_16 29 / 156
4.1.3 Protection
4.1.4 Mechanical data
EMC immunity
Electrostatic discharge (ESD) EN 61000-4-2 Compliant
High-frequency electrical fields EN 61000-4-3 Compliant
Fast transient burst EN 61000-4-4 Compliant
Voltage surges EN 61000-4-5 Compliant
Conducted HF EN 61000-4-6 Compliant
Magnetic field 50/60 Hz EN 61000-4-8 Compliant
Voltage dips EN 61000-4-11 Compliant
Device protection
Overvoltage protection Yes
Overload protection of module supply To be ensured through load circuit monitoring Yes
Reverse polarity protection of module sup-
ply
Yes
Short circuit protection input Electronic
Short circuit protection output Electronic
Protective circuit for input Internal Suppressor diode
Materials
Housing material Zinc die-casting
Flame resistance IEC 60695-2-1
Assembly data
Dimensions L x W x H 225 x 63 x 43 mm
Weight 966 g
