Installation 2-3
Adım 3

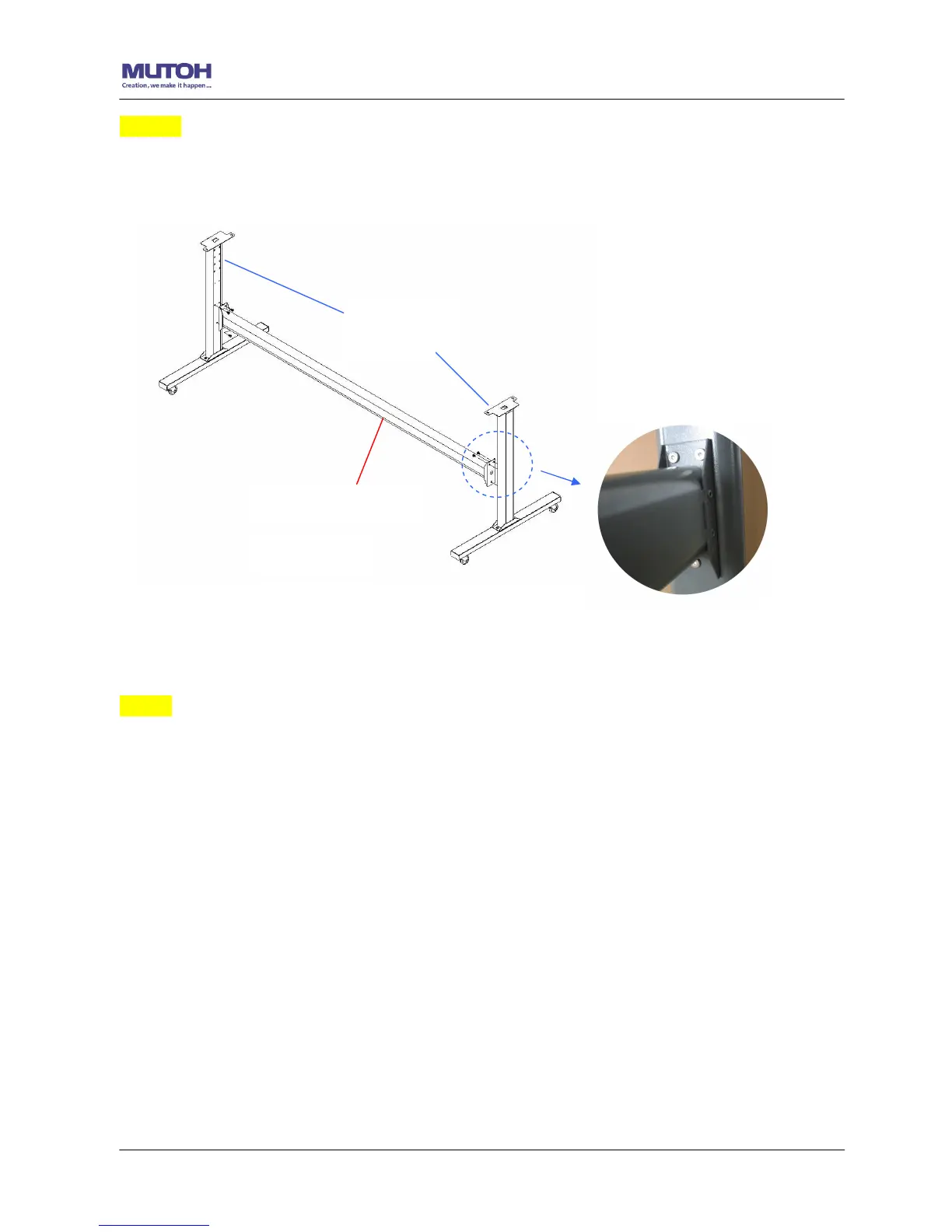

Place the stand beam upright on the T-stand and follow number  to assemble.
(See Şekil 2-4 & 2-5)
Adım 4
Position the stand beam perpendicularly to part  and put the screws into the holes and
tighten them as Şekil 2-5. Then the complete picture of stand will be like Şekil 2-4.
 T - S t a n d
 Stand beam
Şekil 2-4
Şekil 2-5
