Installation 2-2
2.2 Stand & Flexible Media Support System (for VC-1300/1800)
Adım 1
Please examine supplied items in the accessory box of stand carton:
2 pieces of base beams
2 pieces of side beams
1 piece of stand beam
20 pieces of M6 screws
1 piece of M5 L-shape hexagon screw driver
1 piece of Installation Guide for Stand Set
Adım 2
Remove the plotter body and the accessories from the shipped carton.

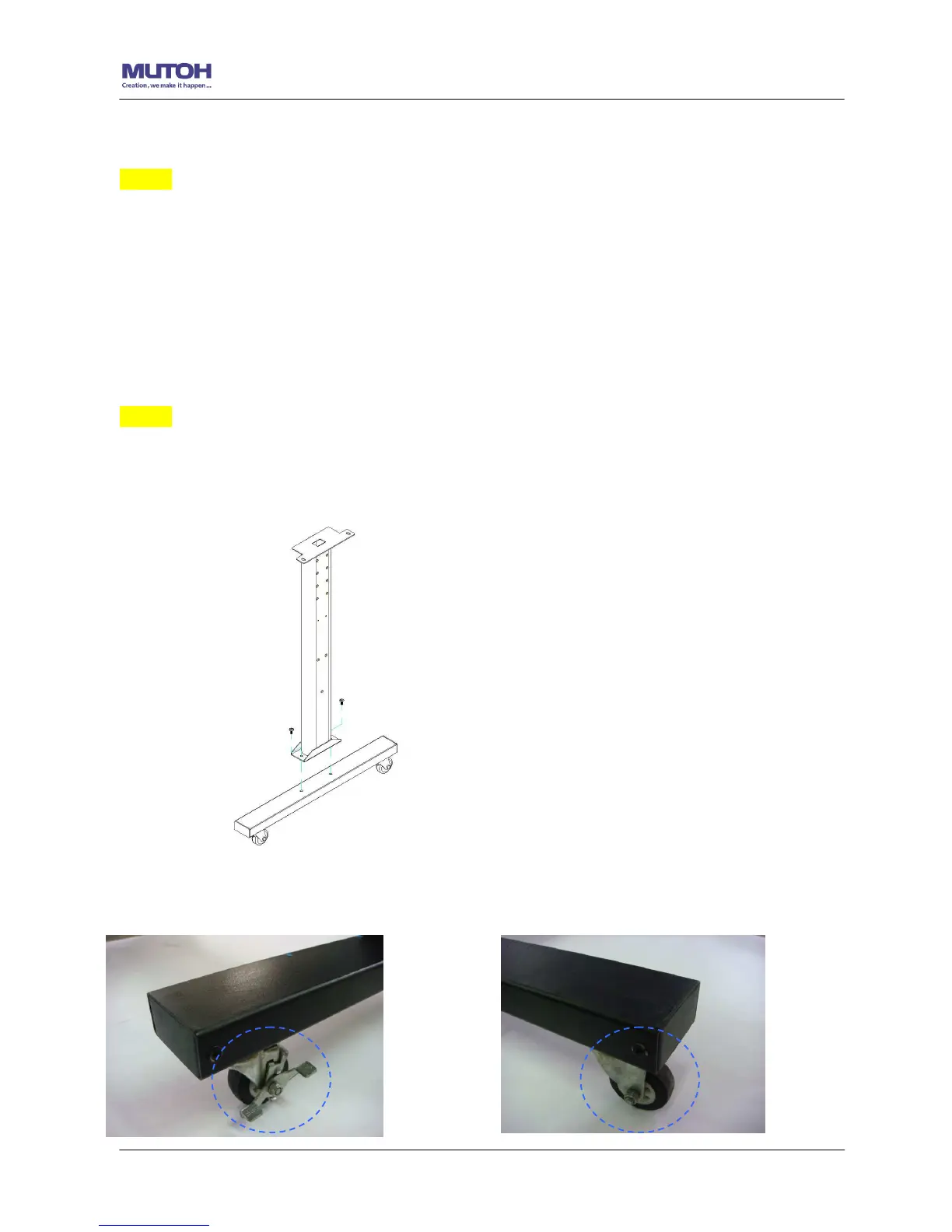

Assemble the base beam to the side beam with 2 screws to form a T-shape stand.
(See Şekil 2-1)
Please pay attention to the direction of the base beam (the wheel on the front end of the
beam comes with a break while the rear one is on its own).
Şekil 2-1
Front Rear
Şekil 2-2 Şekil 2-3
To Next Page
