MV Agusta F3 - Spring Preload (Front Suspension); Rebound Damper (Front Suspension)

ADJUSTMENTS 5
5
EN

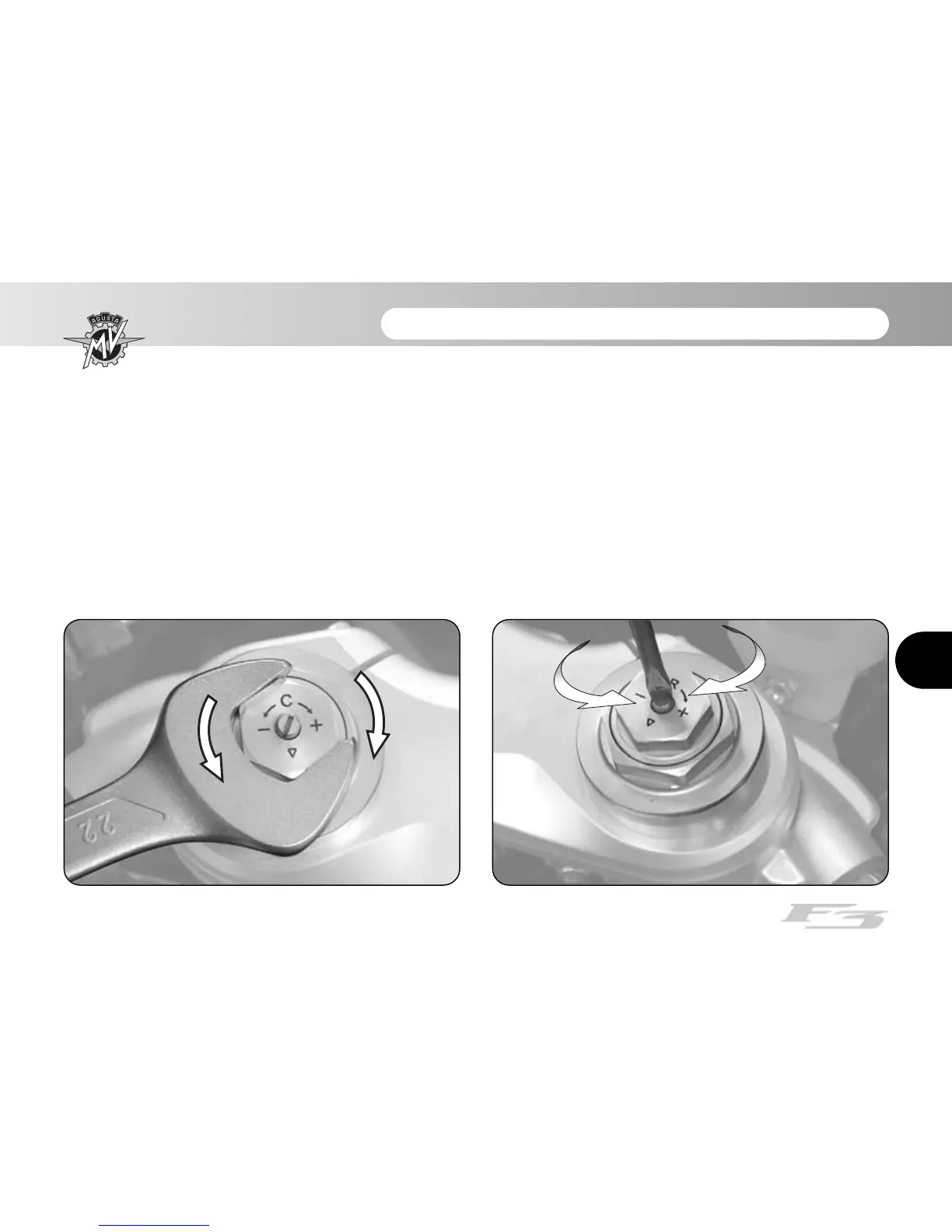

5.5.2. Rebound damper (front suspension)
See the table in the enclosed sheet for rebound
damping adjustment. Refer to the number of turns
from the fully clockwise position.
CAUTION: Do not force the adjusting screw
past its fully clockwise position. Rotate the
adjusting screw counterclockwise to decrease
damping, clockwise to increase damping.
- 117 -
5.5.1. Spring preload (front suspension)
See the table in the enclosed sheet for spring pre-
load adjustment. Refer to the number of turns
from the fully counterclockwise position.
CAUTION: Do not force the adjusting nut past
its fully counterclockwise position. Rotate the
adjusting screw counterclockwise to decrease
preload, clockwise to increase preload.
